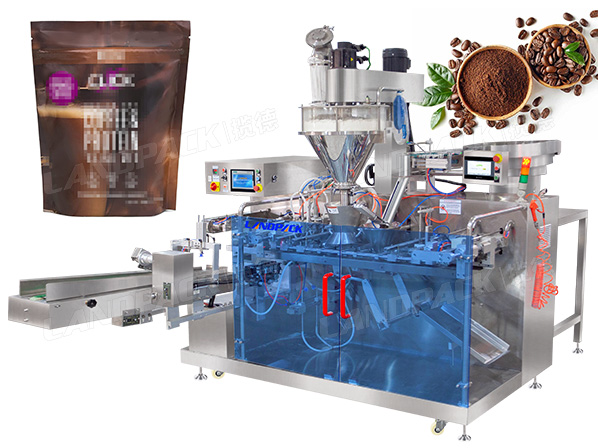

Automatic Coffee Powder Horizontal Premade Zipper Pouch Doypack Packing Machine

Application:

Automatic powder horizontal premade zipper pouch packing machine is suitable for powder material: coffee powder, milk powder, washing powder, protein powder, flour, tea powder, bakery powder, spices powder, medical powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Cutting-Edge Siemens PLC System: Our packing machine is equipped with an advanced Siemens PLC system, ensuring intelligent operation control and alarm function for seamless performance and enhanced productivity.

2.Streamlined Efficiency: Enjoy the convenience of auto-running and filling powder while simultaneously incorporating spoon functionality into a single machine. This streamlined process saves time and increases efficiency, leading to higher production output.

3.Premium Quality Construction: Crafted from high-grade SUS304 stainless steel, our machine offers exceptional durability and hygiene. With a dust treatment feature, it ensures a clean and uncontaminated packaging environment for your powdered products.

Application:

Automatic powder horizontal premade zipper pouch packing machine is suitable for powder material: coffee powder, milk powder, washing powder, protein powder, flour, tea powder, bakery powder, spices powder, medical powder, etc.

It can adopt all type of stand up pouch, premade bag, zipper bag, etc.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm (LW)	70-100mm110-230 (LW)	100-210mm/110-320mm (L*W)	100-260mm/110-320mm (L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45 bags/min(speed is determined by the product filling quantity)	25-50 bags/min(speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)	20-50 bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product
Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)	2140mm1366mm1360mm(LWH)
Collocation	Screw metering,screw elevator

Working Process:

1、Feeding the zipper doypacks

2、Picking the bags and coding

3、Opening the zip bags

4、Auger screws filling with dust cleaning

5、Spoon feeding

6、Arranging

7、Sealing
