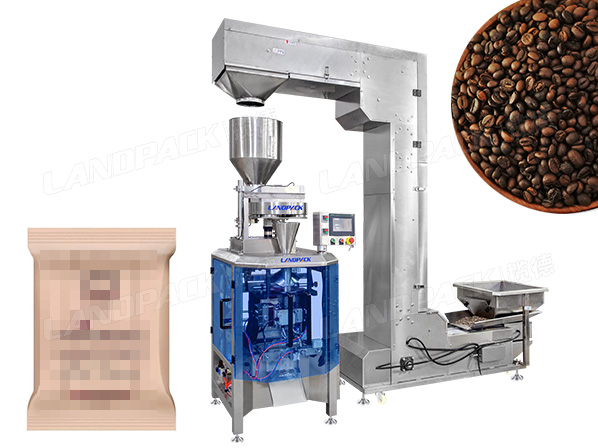

Automatic Vertical Form Fill Seal Coffee Bean Packing Machine With Measuring Cup

Application:

It is apply to pack bulk grain, slice, short bar material products such as coffee bean, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, instant oatmeal/cereal oats, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. PLC system with operation touch screen

2.High-speed machine running by full servo drive, sending the film, volumetric cups filling, forming the bags and sealing is control by dependent servo drive.

3.Especially for the easy filling granular products with small sachets that required the high speed production.

Application:

It is apply to pack bulk grain, slice, short bar material products such as coffee bean, popcorn, shrimp chip, salt, sugar, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, instant oatmeal/cereal oats, etc.

Videos Introduction:

Specification:

Model	LD-320	LD-380
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70 bags/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V, 50/60Hz, 2.2KW	220V, 50/60Hz, 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg

Working Process:

1. Auto Feeding The Products To The Machine

2. Rotary Volumetric Cups Filling

3. Running And Forming The Pillow Bag By Servo Drive

4. Heat Sealing And Output
