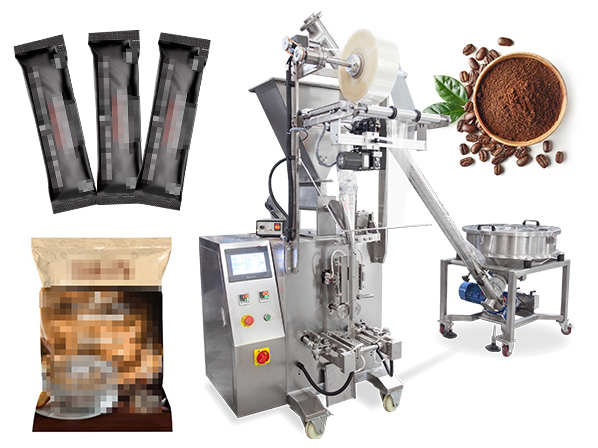

Coffee Powder Small Sachet 3 Side Seal Packing Machine

Application:

This machine is suitable for 3 side sealing packaging of coffee powder.

Machine parameters
:


Model:LD-320D(3 Side Seal)

Film width:120-320mm

Bag length:50-200mm

Bag width:50-150mm

Diameter of film roll:Max.300mm

Packing speed:35-70bag/min

Measuring range:50-500ml

Film thickness :0.04-0.07mm

Power:220V 50/60Hz 2.2KW

Machine size(L*W*H):970*680*1950mm

Machine weight:About 300kg

Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Optional Devices:
Inquiry
Features:

Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

Use famous brand electric and pneumatic components, stable and long life circle.

Use superior mechanical components, reduce the wear out loss.

PLC control with stable and high accuracy output.

Two color touch screen 7", one for packing machine, another for multihead weigher.

Application:

Suitable For 3 Sides Sachet Packing Sachet Of Powder Such As Coffee powder, Milk Powder, Spices, Curry Powder, Flour, Starch, Sugar Powder, Wheat Flour, Detergent Powder Chemical And Medical Powder And So On Packaging.
Videos Introduction:
Specification:
Model LD-320D LD-380D
Film width 120-320mm 180-380mm
Bag length 50-200mm 60-280mm
Bag width 50-150mm 60-180mm
Diameter of film roll Max.300mm Max.320mm
Packing speed 35-70bag/min
Measuring range 50-500ml 50-750ml
Film thickness
0.04-0.07mm
Power 220V 50/60Hz 2.2KW 220V 50/60Hz 2.5KW
Machine size(L*W*H)
970*680*1950mm 1100*800*2150mm
Machine weight About 300kg About 450kg
Optional Devices:


Hot stamp ribbon coder

Vacuum loader

Batch cutter

On-line check weighing with auto feedback weight
