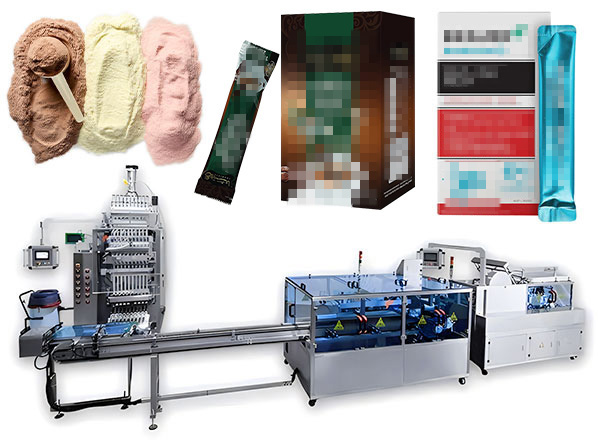

Automatic Multi Lane Powder Stick Bag Packing And Cartoning Machine Packing Line

Packaging Line Composition:

This packaging and boxing system comprises the LD-560BF multi-lane stick pack powder packaging machine, a sorting bag unit, and a boxing machine. It efficiently packages stick packs into boxes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Packing type:

Features:

1. The system automatically handles measuring, bag making, sealing, cutting, counting, product conveyance, boxing, and other functions.

2. Heat-generating and moving parts are enclosed within a protective cover for safety.

3. Contact surfaces with the box and materials are made of 304 stainless steel, ensuring compliance with food and pharmaceutical production standards.

4. The equipment features casters for easy mobility and handling.

5. It includes automatic alarm protection to conserve materials and prevent film wastage.

Application:

This high-speed multi-lane powder stick pack boxing and packing line is ideal for the automatic packaging of powder products with low fluidity across the food, health care, and pharmaceutical industries. It efficiently handles items such as protein powder, meal replacement powder, milkshake powder, bear bile powder, milk powder, coffee powder, solid beverages, and more.

Videos Introduction:

Specification:

Multi Lane Stick Packing Machine Parameters
Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min
Overall dimension	4000mm1580mm1850mm
customizable

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
