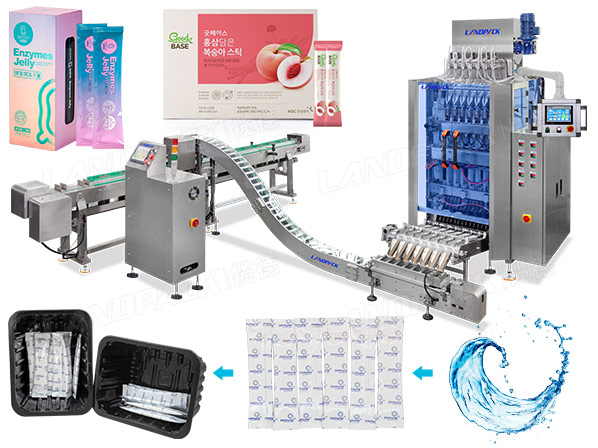

Multi Lane Track Liquid Stick Packing Counting Cartoning Machine Line

Application:

The multi-track liquid stick packing machine with a counting and cartoning machine line is designed for packaging a wide range of liquid products. It is suitable for items such as ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasonings, shampoo, jelly, and more.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1. The magnetic pump ensures precise measurement with an error margin controlled within ±0.5ml, and is designed for easy cleaning.

2. Automatic counting is integrated, with a stop and alarm feature when materials are absent.

3. The finished product conveyor track and ramp conveyor belt are seamlessly connected to ensure each product falls accurately onto the track.

4. Adjustable counting functionality allows for flexible quantity settings to meet varying requirements.

5. The system delivers attractive packaging with secure sealing.

Application:

The multi-track liquid stick packing machine with a counting and cartoning machine line is designed for packaging a wide range of liquid products. It is suitable for items such as ketchup, paste, honey, chili sauce, bean paste, instant noodle sauce, cream, milk, butter, water, oil, vinegar, liquid seasonings, shampoo, jelly, and more.

It can adopt all type of 3/4 sided seal bag, pillow bag, sachet, back sealing bag, box, etc.

multi lane sachet packaging machine

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Working Process:

1.Tank with stirring device, filling evenly

2.Magnetic pump filling precisely

3.7 lanes servo pull film

4.Fall into the conveyor hopper correctly

5.Slop conveyor

6.Electric eye counting device

7.Finished bag all into tray precisely

8.Beautiful bag, firm sealing
