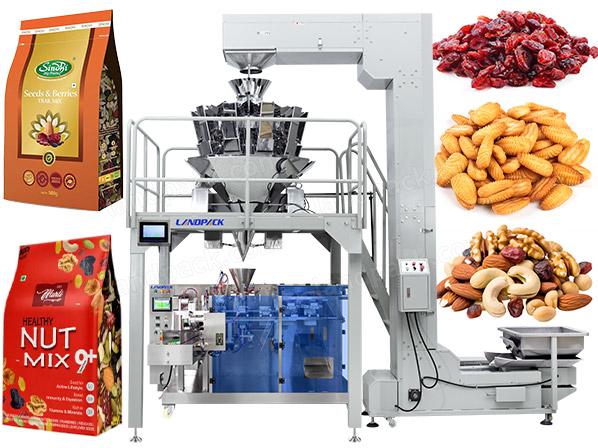

Automatic Granule M Shape Pouch Horizontal Premade Pouch Packing Machine

Application:

This machine efficiently packages a variety of products into M-shaped pouches, including dry fruits, nuts, beans, cereals, seeds, peanuts, dried chili, dried tomatoes, dried flowers, candy, chocolate, and biscuits, ensuring precision and high-quality packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos:
Specification:
Process:
Inquiry
Features:

1. Easy Operation: Equipped with a 7-inch Siemens touchscreen with a multi-language interface, making parameter adjustments simple and user-friendly.

2. High Accuracy: Uses a high-precision multi-head weigher with Japanese technology, ensuring exceptional dosing accuracy and consistency.

3. Fully Automatic Process: Handles feeding, dosing, bag input, and sealing in one seamless operation. Compatible with various bag styles such as stand-up bags, Euro hole bags, linked bags, and bags with date marking.

4. Versatile Packaging Film Compatibility: Supports laminated pouches, PE bags, aluminum pouches, and paper pouches, with bag types including m shaped pouches, stand-up bags, zipper bags, flat bags (3-side seal, 4-side seal, pillow bags, and punched-hole handle bags).
Application:

This machine efficiently packages a variety of products into M-shaped pouches, including dry fruits, nuts, beans, cereals, seeds, peanuts, dried chili, dried tomatoes, dried flowers, candy, chocolate, and biscuits, ensuring precision and high-quality packaging.



m shape pouch packing machine factory
Videos:
Specification:
Type LDSP-160 LDSP-160Y LDSP-210 LDSP-260
Bag Type M shaped pouch, 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size 110-230mm*80-160mm(L*W) 70-100mm*110-230(L*W) 100-210mm/110-320mm(L*W) 100-260mm/110-320mm(L*W)
Filling Range 10g-100g 10g-100g 10g-1kg 10g-3kg
Packing Speed 20-45 bags/min 25-50 bags/min 20-50 bags/min 20-50 bags/min
Machine weight 800KG 800KG 900KG 1000KG
Total Power 2.0KW 2.0KW 2.0KW 2.0KW
Work Flow 1. Giving bag, 2. Pick up the bag (coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product
Dimensions 1750mm*1285mm*1360mm(L*W*H) 2140mm*1366mm*1360mm(L*W*H) 2140mm*1366mm*1360mm(L*W*H)
Collocation Screw metering, screw elevator
Process:

1. Z type elevator feeding

2. Multi heads weigher dosing system

3. Horizontal feeding bag conveyor

4. Flat bottom bag and doypack bag customized station

5.Opening zipper and bag fully

6. Automatic filling

7. Twice sealing station
