Automatic Granules Liquid Mixing Air Free Premade Pouch Packing Machine

Application:

This Automatic Packing Machine is suitable for various pre made bag packaging needs, such as zipper bags, standing bags, 3/4 edge sealing bags, spout bags, etc. This machine is equipped with linear scales and liquid pumps, suitable for mixed measurement packaging of particles and liquids. Equipped with different measuring devices, it can be applied to various particles, liquids, powders, and block products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Flexible Machine suits for different bag size.

2.Suits for the Sauce Meat and Vegetable with vacuum packing.

3.Wide weighing range: 200g-1.5 kg, target weight can be set on touch screen.

4.Separated Measuring and filling sauce and grains into bag.

Application:

This Automatic Packing Machine is suitable for various pre made bag packaging needs, such as zipper bags, standing bags, 3/4 edge sealing bags, spout bags, etc. This machine is equipped with linear scales and liquid pumps, suitable for mixed measurement packaging of particles and liquids. Equipped with different measuring devices, it can be applied to various particles, liquids, powders, and block products.

Samples:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

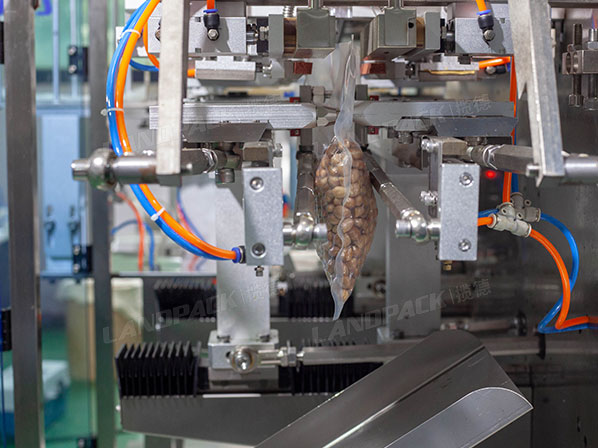

Process:

1.Auto Feeding Bag and Print the date code;

2. Auto weighing according to the target weight;

3.Measuring the Sauce Meat into bag ;

4.Sealing the bag with vacuum packing;

5.Output the Finished Product;
