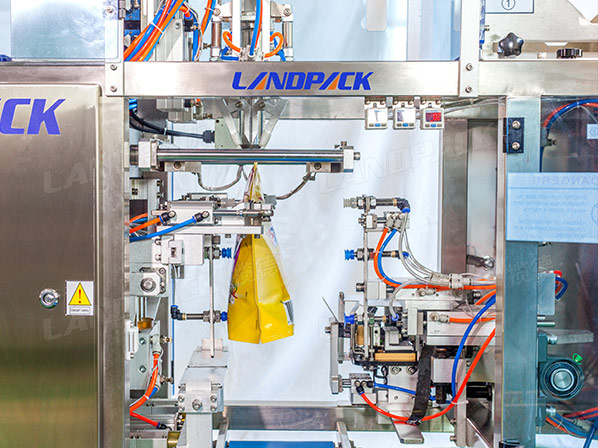

Automatic Liquid Spout Bag Mini Doypack Pouch Filling Sealing Packing Machine

Application:

Automatic liquid spout bag mini doypack pouch filling packing machine is suitable for liquid material: liquid soap, hand sanitizer, ketchup, syrup, peanut butter, shampoo, pizza sauce, honey, paste, oil, mayonnaise, laundry detergent, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1.The machine automatically loads/opens bags, with a packaging speed of 8-10 packages/minute, 600 packages per hour.

2.Single screw liquid pump, driven by servo motor, can accurately measure laundry detergent from 900ml to 3000ml.

3.The machine is suitable for different bag types and can adjust the bag size freely and flexibly.

4.The bag opening success rate of the machine is 99.8%, without bag opening, filling or sealing.

5.The whole machine is made of 304 stainless steel. The quality of the machine is wear-resistant and washable, and it can run smoothly for at least 8-10 years.

Application:

Automatic liquid spout bag mini doypack pouch filling packing machine is suitable for liquid material: liquid soap, hand sanitizer, ketchup, syrup, peanut butter, shampoo, pizza sauce, honey, paste, oil, mayonnaise, laundry detergent, etc.

It can adopt all type of stand up pouch, doypack, spout bag, premade bag, etc.

pouch filling and sealing machine price

Videos Introduction:

Specification:

Model	LG1-300L
Packing material	Multilayer Composite Premade Bag(e.g.: PET/PE)
Bag Type	Spout Bag, 3 Side Seal Bag, Stand-up Bag
Size Range	80mm≤W≤300mm, 100mm≤L≤400mm
Packing speed	1-15 bags/min
Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm can be customized)
Voltage	220V, Single-phase, 50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	0.3 m³/min (Standard machine, no additional function)
Packing Dimension	18607101650mm (Export non-fumigation wooden case)

Working Process:

Bag feeding

Bag opening

Filling

Sealing

Bag output
