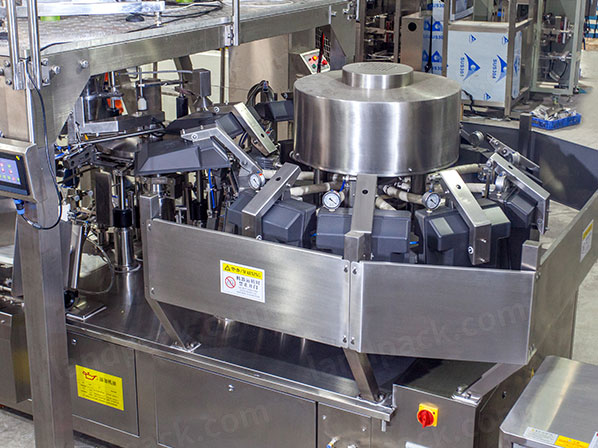

Automatic Rotary Vacuum Retort Pouch Packaging Machine For Pre-cooked Food

Application:

This machine is specifically designed for industries that demand both vacuum sealing and high-temperature sterilization. It finds extensive use in the food sector, efficiently packaging ready-to-eat meals, sauces, soups, marinated and preserved meats, seafood products, and stews and also suitable for packaging vegetables, beans, rice dishes, and nutrient-rich baby foods that require careful vacuum sealing and retort processing for safety and freshness.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. High-Speed Efficiency: Achieves operational speeds of 40-60 bags per minute, maximizing production output and efficiency.

2. Flexible Weight Range: Designed to handle product weights from 100g to 2kg, with an easy-to-use touch screen interface for precise target weight settings.

3. Enhanced Vacuum Sealing: Provides a high vacuum level, significantly extending product freshness and shelf life.

4. Seamless Production Integration: Easily integrates with other equipment in the production line, enhancing workflow automation and overall efficiency.

5. Freshness-Boosting Absorber Feeder: Features an absorber feeder system that maintains vacuum levels to preserve product quality and freshness.

Application:

This machine is specifically designed for industries that demand both vacuum sealing and high-temperature sterilization. It finds extensive use in the food sector, efficiently packaging ready-to-eat meals, sauces, soups, marinated and preserved meats, seafood products, and stews and also suitable for packaging vegetables, beans, rice dishes, and nutrient-rich baby foods that require careful vacuum sealing and retort processing for safety and freshness.

Videos Introduction:

Specification:

The Main Technical Parameters
Model	LD-8200V
Bag Size	Width:70-120mm/120-200mm, Length:80-160mm/150-300mm
Filling Volume	10-500g (Depending on type of products)
Capacity	30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute
Package Accuracy	Error≤±1%
Total Power	2.5KW/5.5kw (220V/380V,3PH,50HZ)
Demension	210014001700 mm/260019001700(LengthWidthHeight)
Weight	1600KGS/3000kgs
Compress Air Requirement	≥0.8m³/min supply by user
Pouch Type	All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout,Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc.
Application Product	1. Any product that can pack in bag, such as fish, poultry, meat, grains and other food items. 2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc. 3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc. 4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. 5. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.
Work Process	Station 1 Giving Bag Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets vacuum caps.Station 4 Filling and consolidate 1Measured its weight or volume by scales.There are an opening detection device insertinto the open bagor pouch to expanding it and detect if it is open or not.Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make bag more straight and to prevent material out from bagStation7 Vacuum and sealingto transform to vacuum equipmentStation 8 Forming and OutputThese 8 stations can change its working function as customized design
