Fully Automatic Dual Filling Nozzle Liquid Doypack Machine For Alcohol Liquor

Application:

This machine is suitable for doypack bag packaging of liquids, such as acohol, liquor, ceam,Skin care, soy sauce, chili sauce, honey, ketchup, tartar, liquid butter, juice, milk, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1. Horizontal bag loading system, designed to accommodate a greater number of bags for improved efficiency.

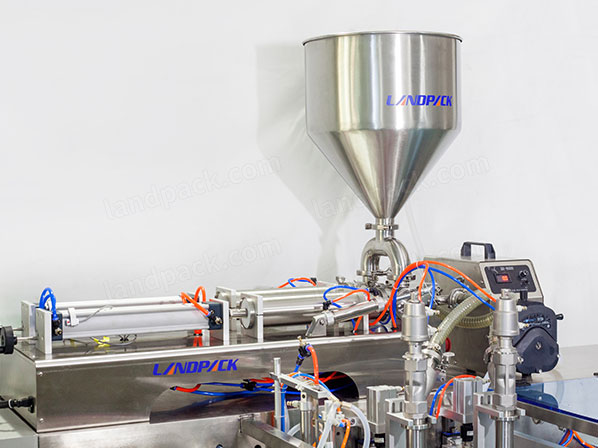

2. Dual-piston metering pump with a wide range of dosing capabilities, ensuring high accuracy.

3. Dual discharge nozzles, enhancing the packaging speed and reducing operational delays.

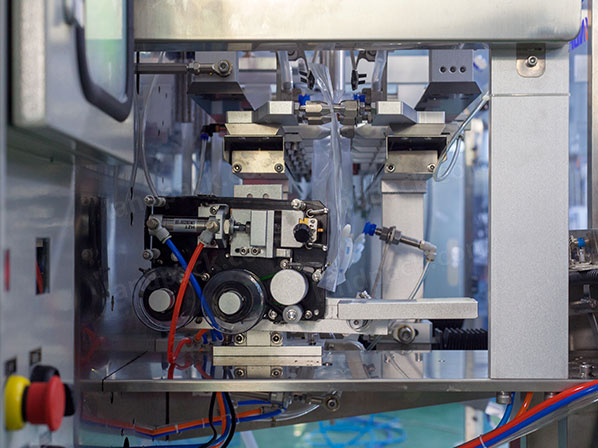

4. Intelligent bag sealing technology, ensuring strong, uniform seals for reliable packaging.

5. Variable conveyor speed control, allowing for adaptable and optimal performance under different production conditions.
Application:

This machine is suitable for doypack bag packaging of liquids, such as acohol, liquor, ceam,Skin care, soy sauce, chili sauce, honey, ketchup, tartar, liquid butter, juice, milk, etc.
Videos Introduction:
Specification:
Type LDSP-160 LDSP-160Y LDSP-210 LDSP-260
Bag Type 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size 110-230mm*80-160mm(L*W) 70-100mm*110-230(L*W) 100-210mm/110-320mm(L*W) 100-260mm/110-320mm(L*W)
Filling Range 10g-100g 10g-100g 10g-1kg 10g-3kg
Packing Speed 20-45bags/min(speed is determined
by the product filling quantity)
25-50bags/min(speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
20-50bags/min (speed is determined
by the product filling quantity)
Machine weight 800KG 800KG 900KG 1000KG
Total Power 2.0KW 2.0KW 2.0KW 2.0KW
Work Flow 1.Giving bag     2. Pick up the bag(coding)     3.Open the bag up and down     4.Filling
5.Heating sealing     6.Output of product
Dimensions 1750mm X 1285mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H)
Collocation Screw metering,screw elevator
Working Process:

1.Giving bag;

2. Pick up the bag(coding);

3.Open the bag up and down;

4.Filling;

5.Heating sealing;

6.Output of product;
