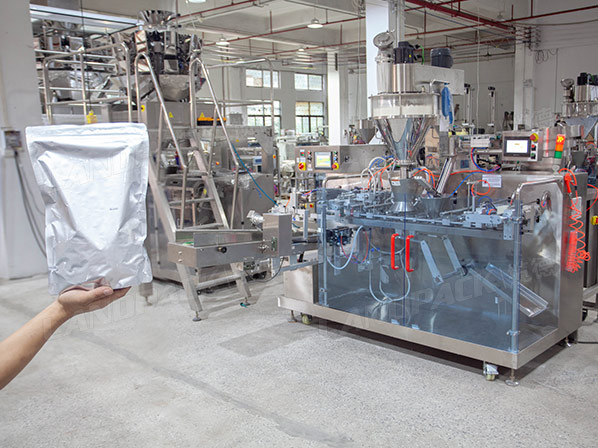

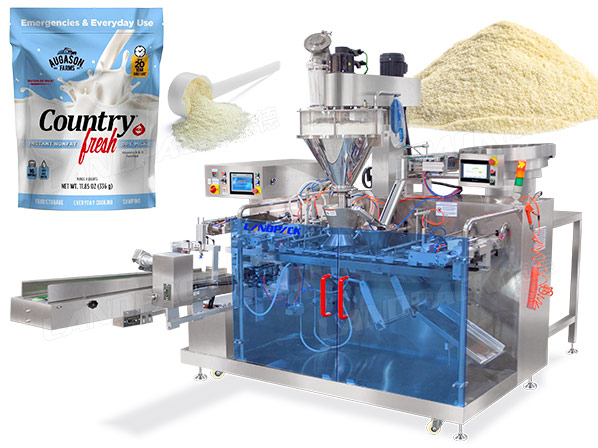

High Accuracy Horizontal Powder Premade Pouch Packing Machine With Dustproof Device

Application:

This machine is designed for doypack,with functions of making hanging hole,special shape,zipper or spout. Also ,it can complete giving bag,measuring,filling,sealing, date printing,counting,finished product delivery. It is suitable for filling different products such as powder,granule,tablets,liquid,cream and other non free-flowing liquid which equipped with feeding and measuring devices.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Equipped with different metering devices, it can realize packing different material such as powder, liquid, granule, sauce etc.

2 .Various bag type, it is very easy to change.

3. Simple in structure, easy to operate.

4. Sealings with hot seal and cold sealing with smooth sealing effect.

5.Hang hole cutting and top spout adding are optional.

Application:

The machine is an automatic packing machine for premade bags with or without zipper. It can meet the requirment which needs different specifications, big or small volume but small capacity. It can not only pack 4-side sealed bag, but even also bags with hanging hole, standing pouches and shaped bags and doypack bag with corner spout etc. It is applicable of powder,granule,liquid,paste and blocks etc by using different measuring devices. It is convenient to switch the packing type.

Videos Introduction:

Specification:

Item	High Accuracy Horizontal Powder Premade Pouch Packing Machine With Dustproof Device
Brand	Landpack
Model	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side sealing bag, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min	25-50bags/min	20-50bags/min	20-50bags/min
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW
Work Flow	1. Giving bag 2. Pick up the bag(coding) 3. Open the bag up and down 4. Filling 5. Heating sealing 6. Output of product
Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator

Working Process:

1、Feeding the zipper doypacks

2、Picking the bags and coding

3、Opening the zip bags

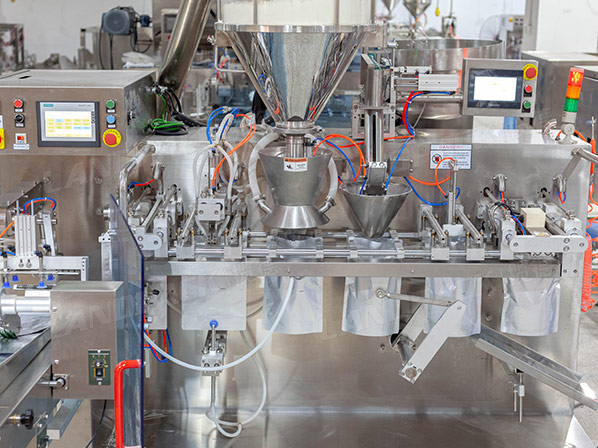

4、Auger screws filling with dust cleaning

5、Spoon feeding

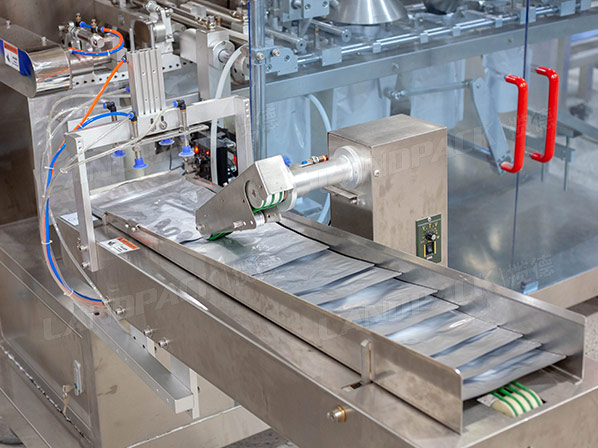

6、Arranging

7、Sealing
