Horizontal Premade Zipper Bag Gusset Pouch Doypack Powder Packing Machine

Application:

The machine is suitable for packaging powdered materials, such as milk powder, cocoa powder, wheat flour, tapioca powder, coffee powder, curry powder, chili powder, seasoning powder, protein powder, tea powder, soy powder, lubricating powder, soda Powder, baking powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.This is a fully-automatic packing machine with Multi-function which can be integrated with various filling systems.

2.High capacity auger feeding machine, save labr cost.

3.Servo motor to control and high speed to work.

4.Automatic alarming function and stop when the inadequate air pressure.

5. High precision horizontal bag feeding device, speed adjustable.

6.Famous brand components, ensure the quality and durability of machine.

7. Open the zipper efficiently and accurately.

8. Heavy weight prowder,beautiful packaging, accurate measurement.

9. Vacuum cleaning to keep the bag mouth clean.

10.smooth performance and low noise, perfect package appearance with enough film storage, Sensible safety device and no pollution during production to get Friendly working environment.

Application:

The machine is suitable for packaging powdered materials, such as milk powder, cocoa powder, wheat flour, tapioca powder, coffee powder, curry powder, chili powder, seasoning powder, protein powder, tea powder, soy powder, lubricating powder, soda Powder, baking powder, etc.

Samples:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Process:

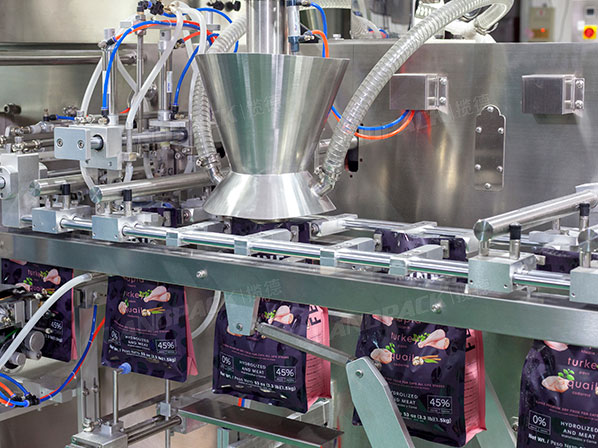

High capacity auger feeder, save time and labor cost

Horizontal bag feeding device

Date printer

Opening zipper and bag fully

Volumetric pump filling,Vacuum cleaning

Sealing-Output
