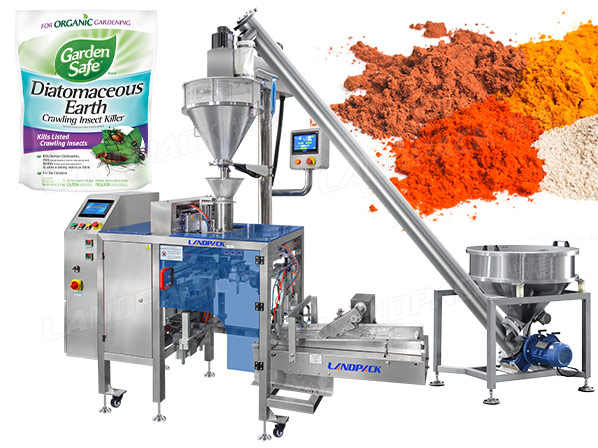

Multifunction Powder Zipper Bag Doypack Filling Sealing Premade Pouch Packing Machine

Introduction:

This multifunction zipper bag doypack filling sealing premade pouch packing machine is engineered for efficiently packing powder, liquid and granular products, and it accommodates a range of pouch types. It automatically pick up - open - fill - seal - date print (Option) - output, it enhances your packaging processes through speed, hygiene and safety.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Innovative pouch clamping system.

2.Tool-less quick to remove and clean.

3.Food-grade SUS304 contact surfaces.

4.Compact footprint and low mainteance.

5.Automatic filling machine for premade doypack pouches.

6.Automatic operation control, easy to adjust and operate.

7.PLC controlled pouch loading - open - fill - seal - output.

Application:

This machine can be used to pack various powder into pouches, like spices powder, chocolate powder, coffee powder, drinking powder, flour, milk powder, ginger powder, chili powder, pepper powder, turmetric powder etc.

Suitable Pouch Type:All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout etc.

Samples:

Specification:

Specifications
Model No.	LDB-200	LDB-300	LDB-430
Bag Width	70-280mm	70-280mm	70-330mm
Bag Length	80-320mm	80-440mm	80-440mm
Bag Type	Stand-up bag, pillow bag, zipper bag, box pouch
Power Supply	110V/220V/380V/415V, 50/60HZ
Air Consumption	7.0 CFM@80 PSI 0.14m3/m3
Pneumatic Parts	PIAB Vacuum Generator, Pneumatics component Airtac from Taiwan

No.	PRODUCT	SPECIFICATION
1	Doypack Machine MDP1	Packing speed :12-16bags/min
2	Zipper Opener	Open the Closed Ziplock Before Bag Open
3	Necessary Parts for Powder	Grip Seal,Hopper Shaker,Bag Tapper
4	Zipper Closer	Work on Only One Bag, Close Zipper After Filling

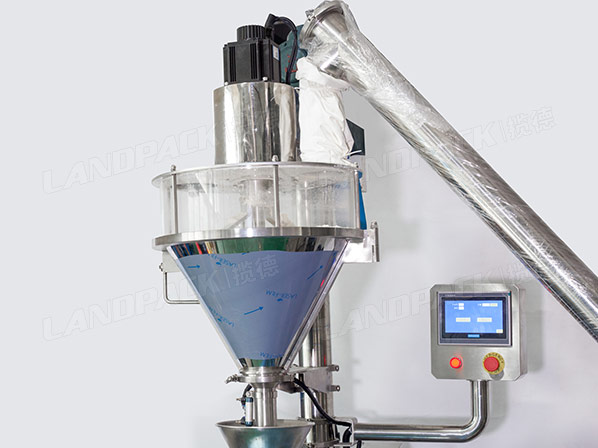

5	Auger Filler	For Powders Maximum 1000g, Specially for Powder Products, Dose Powders,Accuracy ±0.3-1%, Fork Tube Level Sensor
6	Screw Conveyor	Specially Made for Powders, with Tube Diameter 114mm,2.3m height
7	Cover	Avoid Dust Everywhere
8	Safety Net	Avoid Hands Jammed

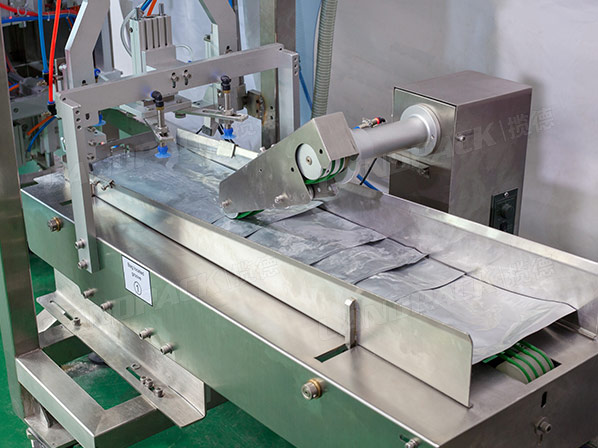

9	Take-away Conveyor (Belt Width 200mm)	Get the Finished Bag Out From the Packing Machine, PVC Belt Conveyor for Easy Dismantle

Working Process:

It automatically pick up - open - fill - seal - date print (Option) - output, it enhances your packaging processes through speed, hygiene and safety.
