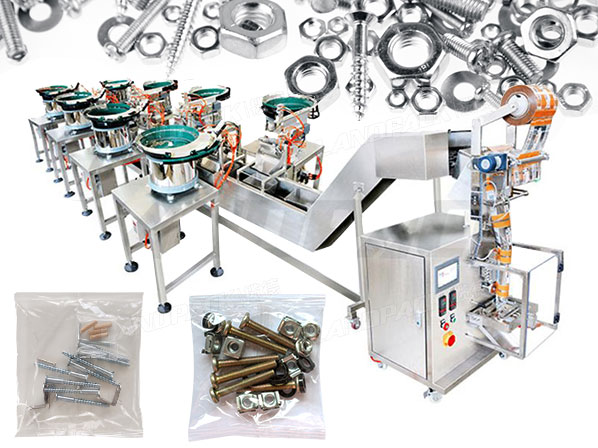

Automatic Furniture Fittings Mixing Counting Packing Machine With 8 Vibrating Feeders

Application:

This automatic furniture fittings mixing counting packing machine with 8 vibrating feeders is suitable for counting and packing various screws, hardware, fasteners, and auto parts. Share a set of loading and weighing systems, saving cost and space.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Optional:

Features:

1.Adopting spacking counting and fiber optics re-inspection or completed fiber optics counting, suitable for mixing packaging for 1-40 varieties of items.

2.Solid sealing, smooth and elegant bag shape; high efficiency and durability, can be equipped with exhaust device, printer, labeling machine, transfer conveyor, and weight checker.

3.Automatic ordering, counting, packing and printing etc. Easily adjust the number of screws in the bag, and set the quantity of bags that you need, when met, the machine will stop automatically.

Application:

This automatic furniture fittings mixing counting packing machine with 8 vibrating feeders is suitable for counting and packing various screws, hardware, fasteners, and auto parts. Share a set of loading and weighing systems, saving cost and space.

It can adopt all type of back sealing bag, pillow bag, etc.

furniture fittings packing machine

Videos Introduction:

Specification:

Model	LD-60LS	LD-388LS	LD-420LS
Speed	10-60bag/min
Counting Range	1-20 pcs/bag; 1-40 types/bag
Pouch size	L:40-160 W20-110mm	L:40-200 W30-150mm	L:50-300mm W: 80-200mm
Film Width	220mm	320mm	420mm
Sealing type	Back sealing/Three sides sealing
Voltage	220V, 380V/50Hz/60Hz
Packing material	OPP/PE/PET
Air Consumption	0.4m³/min 0.6MPa

Optional:

1.Furniture fittings feeding

2.Furniture fittings counting

3.Forming

4.Filling

5.Sealing

6.Bag output
