Automatic Hardware Screw Fastener Bolt Counting And Packaging Machine Nut Packing Packaging Machine

Application:

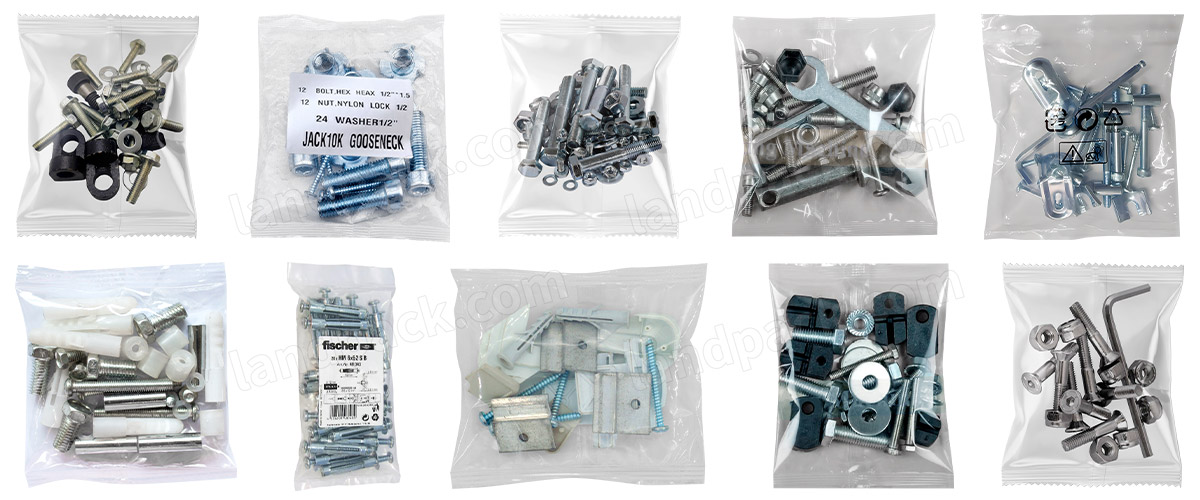

Our automatic packing machines can count and pack the same item or mixed items into the package such as screw, bolt, washer, nut and other kinds of regular shape fastener products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

1. PLC program with a user-friendly man-machine interface for efficient operation.

2. Air cylinder control ensures greater stability during operation.

3. Built-in labeling printer for real-time printing of expiration dates, production details, and batch numbers with on-line control.

4. Fiber sensor enables accurate product counting and simplifies operation for various items.

Application:

Our automatic packing machines can count and pack the same item or mixed items into the package such as screw, bolt, washer, nut and other kinds of regular shape fastener products.

Videos Introduction:

Specification:

Model	LD-XC520
Film Width	200-620mm
Bag Width	90-290mm
Bag Length	90-300mm
Packing Speed	5-40 Bags/Min
Box Width	90-150mm
Box Length	90-245mm
Packing Speed	12-18 Boxes/Min
Voltage	3Kw 220/380V 50/60Hz
Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item	Artificial Weighing + Packing	After Using The Packaging System
Average Weight Deviation Of A Single Bag	≤5g	≤2g (Saved 3 grams)
Need Labor	10 people	3 people（Saved 7 Labor）
Hygiene Situation	⭐⭐	⭐⭐⭐⭐⭐
Energy Consumption	⭐⭐	⭐⭐⭐
Product Waste	⭐⭐⭐⭐⭐	⭐⭐
Production Management	Not easy to manage	Digital management
Production Layout	Labor-intensive and complex production environment.	Mechanical automation, simple and beautiful production environment.

Working Process:

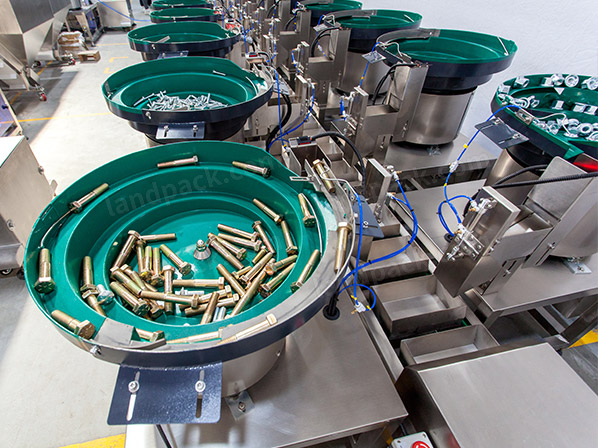

1.16 Vibration Disk Counting Bowls

2.Eye marsensor for the counting the exact Quantities

3.5Meters Transit Bucket Chain Conveyor for counting well Hardwares

4.LD520A Main Packer for max 520mm open roll film

5. Cylinder control cutting film

6 Instant Printing and Labeling Machine for batch Number ,barcode QR code etc.

7.Bag former for making the pillow sachet

8.Horizontal Sealing by air cylinder more stable

9.Finished Conveyor
