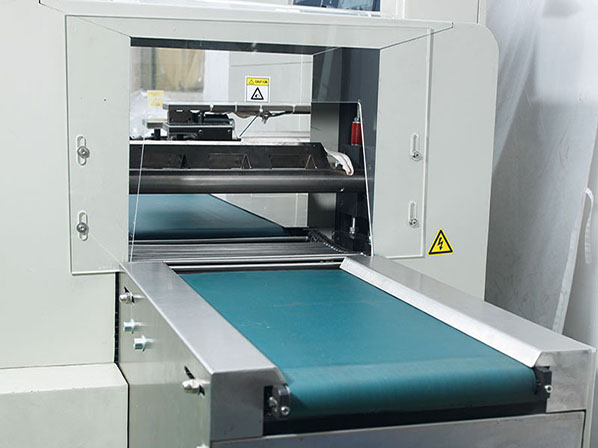

High Speed Automatic Switch/ Hardware Accessories Packing Machine

Application:

Suitable for pack various kinds of regular objects into pillow bag or gusseted bag. the object like metal parts, industrial parts, hardware accessories, toys and other conventional items.

Details:

Model:LP-320

Speed: 40-230bag/min

Packing Size: 3770*680*1420mm

Control system: PLC

Power supply: 220V 50/60Hz2.4KW

Dimension: Max.320mm

Equipment material: 304

Weight: About 500kg

Description of the main packaging process: Box feeding-weighing-feeding-out of box

Features:

Dual frequency conversion control, bag length can be setted and cutting in one step,saving time and films.

Interface features are easy and quick setting and operating.

Self diagnosis failure function, clear failure display.

High sensitivity photoelectric eye color tracing,numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packing different materials.

Positioned stop function,without sticking knife or wasting film.

.Simple driving system,reliable working,convenient maintenance.

All control is realized through software,easy for function adjusting and technical urgrade.

Application:

Automatic Switch/ Hardware Accessories Packing Machine Suitable for pack various kinds of regular objects into pillow bag or gusseted bag. the object like metal parts, industrial parts, hardware accessories, toys, switch and other conventional items.

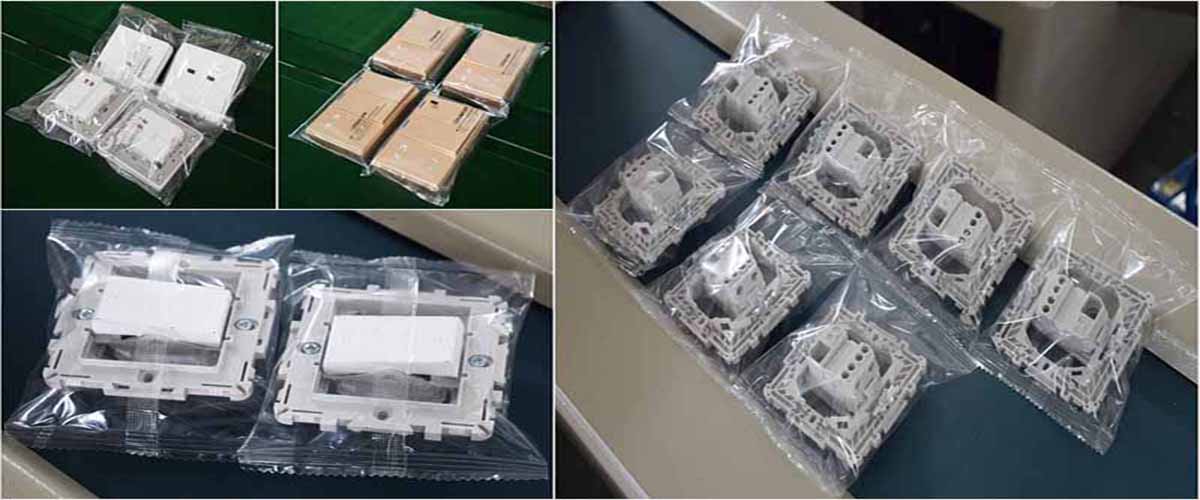

Samples:

Specification:

Model	LP-250B	LP-250D	LP-250E	LP-250S	LP-320B	LP-320D
Film Width	Max.250mm	Max.250mm	Max.250mm	Max.250mm	Max.320mm	Max.320mm
Bag Length	65-280mm	90-220mm	50-115mm	45-90mm	65-280mm	90-330mm
Bag Width	30-110mm	30-110mm	30-80mm	30-80mm	50-160mm	50-160mm
Products High	Max.40mm	Max.55mm	Max.35mm	Max.35mm	Max.40mm	Max.55mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm	Max.320mm
Packing Speed	40-230bag/min	40-230bag/min	60-330bag/min	60-330bag/min	40-230bag/min	40-230bag/min
Power	220V 50/60Hz2.4KW	220V 50/60Hz2.4KW	220V 50/60Hz2.4KW	220V 50/60Hz2.4KW	220V 50/60Hz2.6KW	220V 50/60Hz2.6KW
Machine Size(LWH)mm	37706801420	37706801420	37706801420	37706801420	37707201420	37707201420
Machine Weight	About 500kg	About 500kg	About 500kg	About 500kg	About 550kg	About 550kg

Combined Parts:

1.Lateral feed device; 2.Straight feed device; 3.Belt material conveyor; 4.End sealing auxiliary conveyor; 5.Auxiliary material feeding device; 6.Materia cut prevent device; 7.Perforating device; 8.Angle folding device; 9.Date Printer; 10.Labelling machine
