Multi-Function Vertical Form Fill Seal Hardware Screw Counting And Packing Machine

Application:

It is suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

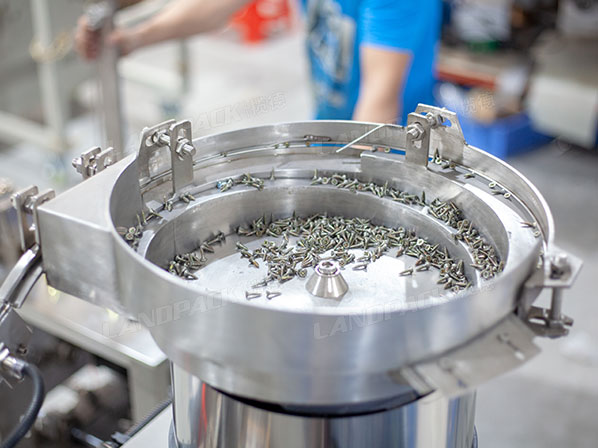

1. Custom-tailored vibration plates for screw sample, liner vibration arrange device and high precision counting device.

2. Vibration feeding screw to count, counting accurate.

3. Step motor control combines with coding tracking system, cutting right.

4. Single-chip microcomputer control system, self-diagnosis, automatic stop when fault, automatic alarm.

5. Auto display package quantity, easy operate and safety.

6. Machine can automatic finish counting, making bag, filling, sealing and cutting.

Application:

Our packing machine widely use in:

Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)

Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)

Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)

Plastic, pipe fittings (Pipe, Joint etc.)

Clothes parts (Button, Slider etc.)

Toys (Toy Building Brick, Dice etc.)

Stationery (Mark, Pen, Clip etc.)

Other regular shape parts

And other solid material counting/ weighing and packing.

It can pack the same items or mixed items in the packs by quantity.

Videos Introduction:

Specification:

Model	LD-320AH-1	LD-320AH-2	LD-320AH-6
Vibration Disk Number	1	2	6
Packing Speed	30-70Bags/min	30-70Bags/min	30-70Bags/min
Measure Range	1-X Pieces(Depend on Product)
Bag Sizes	(L)20-120mm; (W)50-85mm	(L)20-120mm; (W)50-85mm	(L)20-120mm;(W)50-85mm
Total Power	1.2KW	2.2KW	2.2KW
Net Weight	150KG	250KG	450KG
Bag Type	Back-Sealing Bag; 3 Sides Sealing Bag
Packing Material	Composite film, aluminum foil or heat shrink material
Dimensions	12709451616mm(LWH)

Benefit:

Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item	Artificial Weighing + Packing	After Using The Packaging System
Average Weight Deviation Of A Single Bag	≤5g	≤2g (Saved 3 grams)
Need Labor	10 people	3 people（Saved 7 Labor）
Hygiene Situation	⭐⭐	⭐⭐⭐⭐⭐
Energy Consumption	⭐⭐	⭐⭐⭐
Product Waste	⭐⭐⭐⭐⭐	⭐⭐
Production Management	Not easy to manage	Digital management
Production Layout	Labor-intensive and complex production environment.	Mechanical automation, simple and beautiful production environment.
