Automatic Liquid Bottle Filling And Capping Machine Lines With Inkjet printer

Application:

It is suitable for filling liquids and pastes of any fluidity in various industries. Such as hand sanitizer, distilled spirits, alcohol, lotion, shampoo, cream, toner, emulsion, nourishing, detergent, pesticides, syrup, peanut butter, condensed milk, chocolate sauce, ketchup, shampoo, fruit juice, honey, detergent, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1.With the support of PLC software, the servo motor, servo driver and volume adjustment only need to set the target volume on the touch screen, and the equipment can automatically increase or decrease to reach the target volume. Color touch display operation, monitoring and other functions.

2.Wide application range and convenient adjustment.

3.It is suitable for the filling of most bottle types (especially special-shaped bottles) with convenient volume adjustment.

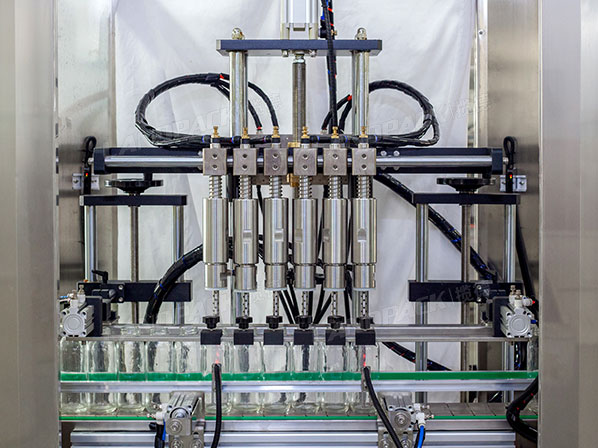

4.The filling bulkhead with anti dripping and wire drawing, the filling lifting system for anti high foam products, the positioning system and liquid level control system to ensure the positioning of the bottle mouth are adopted.

Application:

The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as juice, edible oil, sauce, daily necessities, medicine, mobility liquid, detergent, automobile oil, glass water, hand sanitizer, shower gel, shampoo, etc.

Videos Introduction:

Specification:

Model	LD-ALF01
Filling Range	50-1000ml(Customizable)
Filling Speed	20-35 bottles/min
Measurement accuracy	±1%
Power	2.5 KW
Working power supply	220V, 50Hz
Working pressure	0.6-0.8MPa
Weight	400kg
Size	L4000W1320H2090(mm)

Working Process:

1. Bottle turntable feeder

2. Negative ion rinser

3. Piston bottle filling machine

4. Cap lifter+ Capping machine

5. Round bottle labeling machine

6. Inkjet printer

7.Collecting platform
