Full Automatic Liquid Bottle Filling Capping And Labeling Machine

Application:

Suitable for automatic filling, capping and labeling of various round, flat, square and other special-shaped bottles, cans, boxes and cans. Applying to food, medicine, pesticide, chemical and other industries. such as hand sanitizer, distilled spirits, lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce..

Details:

Model: LDFA-04

Power:1.2Kw

Power:110V

Air pressure:0.6Mpa

Filling capacity: 50-5000ml

Dimension:2000*1000*1500mm

Bottle size:20-1500mm(customized)

Production capacity: 1000-8000bottles/hour(customized)

Features:

Stronger PLC software support, may realize the ideal filling operation.

The touching operation color screen, can display the production state, operation procedures and filling ways, tableau objective, operation simple and maintenance convenient.

This China most popular products simplex filler machine jar filling machines automatic liquid filling machine uses vacuum sucking technology to ensure no leakage of filling head during filling production process.

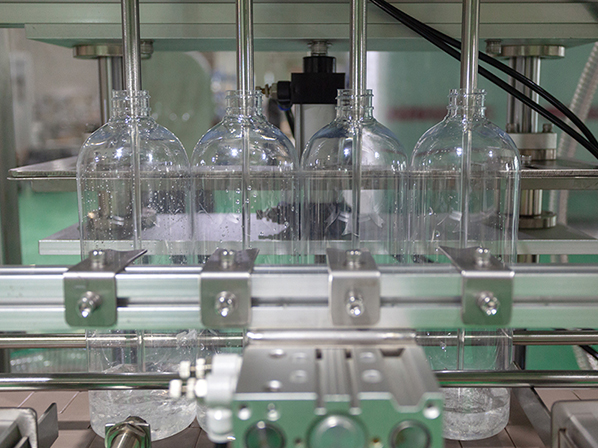

Each filling-head is equipped with a bottle-mouth-clamping device, ensuring the injecting material correct aiming at.

This machine suits for the filling of different sizes of vessel, may change the filling sizes within a few minutes.

Pivotal electrical part use world famous brand such as Mitsubishi, OMRON, SIEMENS.

Optional servo filling system.

Application:

Suitable for automatic filling, capping and labeling of various round, flat, square and other special-shaped bottles, cans, boxes and cans.

Applying to food, medicine, pesticide, chemical and other industries. such as hand sanitizer, distilled spirits, lubricate oil, edible oil, liquid detergent, shampoo, tomato sauce, salad sauce.

Samples:

Specification:

Model	LDFA-04
Product name	Automatic Liquid Bottle Filling Capping and Labeling Machine
Production capacity	1000-8000bottles/hour(customized)
Filling capacity	50-5000ml
Bottle size	20-1500mm(customized)
Qualified Stoppering	≥99%
Qualified cap putting	≥99%
Qualified capping	≥99%
Air pressure	0.6Mpa
Power	1.2Kw
Machine weight	600kg
Power	110V220V/380V 50~60Hz(According to customer)
Warranty	Two year free
Certificate	ISO9001, GMP, CE
Applied bottle range	Round/flat/square bottles
Single machine noise	≤70dB
Dimension	200010001500mm

WorkProcess:

1.The Automatic Liquid Bottle Filling Capping and Labeling Machine is a new generation of filling machine developed by our company based on foreign advanced technology.

2.It adopts PLC and servo quantitative, integrating electromechanical and pneumatic. The electrical and pneumatic components are selected from world-renowned brands and are controlled by PLC.

3.The design is novel, beautiful in appearance, stable and reliable in performance, high filling accuracy, strong adaptability, simple operation, Features such as easy maintenance.

4.Part of the devices can also be used for high-temperature filling at 80-95℃ after special treatment.
