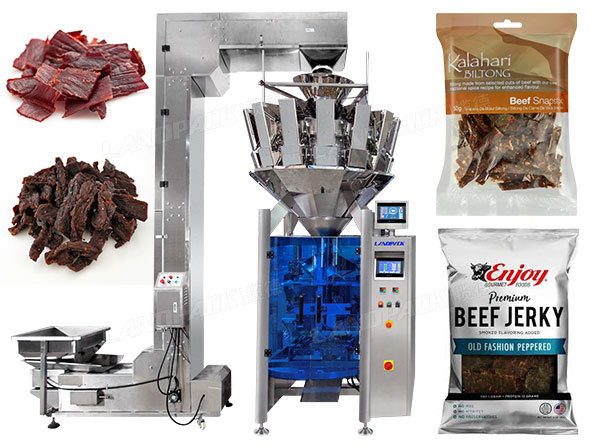

Automatic Jerky Vertical Form Fill Seal Packaging Machine With Nitrogen Filling Device

Application:

Designed for beef jerky, dry fruit, cuts, cashew, coffee, frozen food, biscuits, cereals, pet food, sugar/ salt, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1. The new design, beautiful appearance, the structure is more reasonable, more advanced technology.

2. English and Chinese screen display. PLC control, servo motor, very easy to operate. Do not need to stop machine to adjust any parameters.

3. Fully automatic bag forming, dosing Filling, sealing, coding, conveying, counting can be finished in one operation, most labor-saving equipment.

4. High quality stainless steel, suitable for GMP, good for food packaging with high standard.

5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
Application:

Suitable for packing all kinds of grain material such as beef jerky, sunflower seeds, peanuts, nuts, beans, potato chips, popcorn, almond, dry fruit, vegetable salad , frozen food, jelly, biscuit, chocolate, filbert, corn, pet food, hardware.



Videos Introduction:
Specification:
Model LD-420Y
Packing speed 10-80 bags/min
Bag size L: 50-300mm, W: 80-200mm
Bag making mode Pillow-type bag, standing bag, punch hold, and connect
Measurement Range 2000ml
The maximum width of packing film 420mm
Thickness of film 0.04-0.10 mm
Air consumption 400L/min, 0.6×105Pa
Main power/voltage 4.0 KW/220V, 50-60Hz
Dimension 1720*1030*2254mm
Weight 450Kg
Working Process:

1.Z type conveyor : transport the beef jerky.

2.Multi heads weigher : Weight the beef jerky.

3.Main packer : pack the beef jerky automatically.

4.Nitrogen filling device : Filling the gas into bag.

5.Finished product conveyor: Collect the finished products from the machine.
