Automatic Nitrogen-Filled Pouch Packing Machine With Keep Fresh Function

Application:

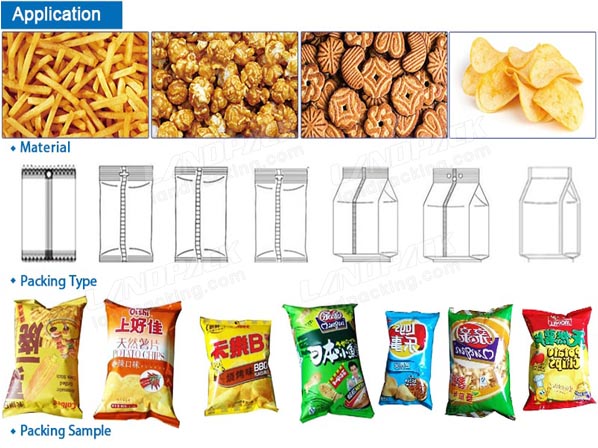

Automatic nitrogen-filled pouch weighing and packing machine suitable for all kinds of products that need to extend the shelf life and keep fresh, such as potato chips, popcorn, rice, puffed food, biscuits, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.)

Details:

Model:LD-420N

Film Thickness:0.04-0.08mm

Bag Length:80-300mm

Bag Width:60-200mm

Film Roll Diameter:Max.320mm

Pakaging Rate:5-60bag/min

Film Width:Max.420mm

Measurement Range:150-1500ml

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos:

Specification:

Combined Parts:

Features:

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

9. Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

10.Low loss, labor saving, easy for operation and maintenance.

Application:

Automatic nitrogen-filled pouch weighing and packing machine suitable for all kinds of products that need to extend the shelf life and keep fresh, such as potato chips, popcorn, rice, puffed food, biscuits, vegetable salad (shreded or sllices vegetables, like iceberg lettuce, cabbage, romain, spring onion and leek ect.)

Videos:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Combined Parts:

LD series main frame

multi-heads weigher

Nitrogen Generator

Z type bucket elevator

Vibration feeder

Supporting platform

Product conveyor
