Automatic Dry Food Horizontal Pre-Made Pouch Doypack Packing Machine With Multihead Weigher

Application:

It is suitable to use in packing the high accuracy and easy fragile material. Such as: dry food, dry fruit, coffee beans, nuts, frozenfood, pet food, beef jerky, puffy food, chips, jelly, candy, pistachio nuts, apple slices, pasta, seeds, snack, french fries, rice, small hardware etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Easy operation. Most of of parameters in 7inch Simens touch screen with multi-language.

2.Accuracy is very good. Dosing by high precision multihead weigher, Japanese technology ensure high precison and guarratee.

3.Full automatic, Feeding, Dosing, Bag Inputting, Sealing. ( Bag can stand up, or with Euro hole, Linked, date of manufacture )

4.Package Film: Lamination Pouch ,PE,Aluminium Pouch, Paper Pouch, Bag type can be Stand bag, zipper bag, flat bag (3 side seal, 4 side seal, bag with punched hole handle, pillow bag etc.).

5.Packaging Machine are used in almost every industry today,food or non-food, They are efficient packaging solutions.

Application:

It is suitable to use in packing the high accuracy and easy fragile material. Such as: dry food, dry fruit, coffee beans, nuts, frozenfood, pet food, beef jerky, puffy food, chips, jelly, candy, pistachio nuts, apple slices, pasta, seeds, snack, french fries, rice, small hardware etc.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Process:

1.Z type elevator

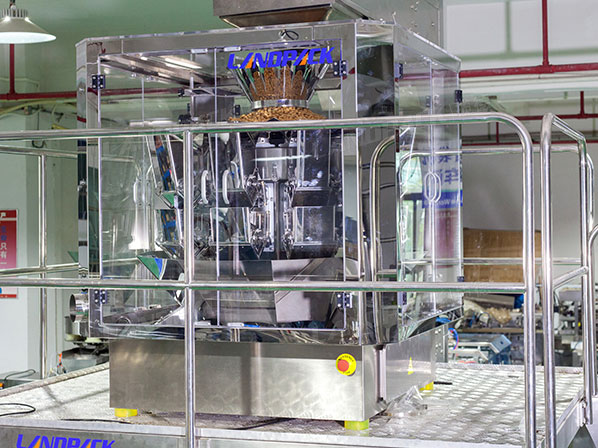

2.10 heads weigher with high weighing precision

3.Vertical bag Magazine station

4.Ribbon coding

5.Opening zipper and bag fully

6.Automatic filling

7.Automatic filling
