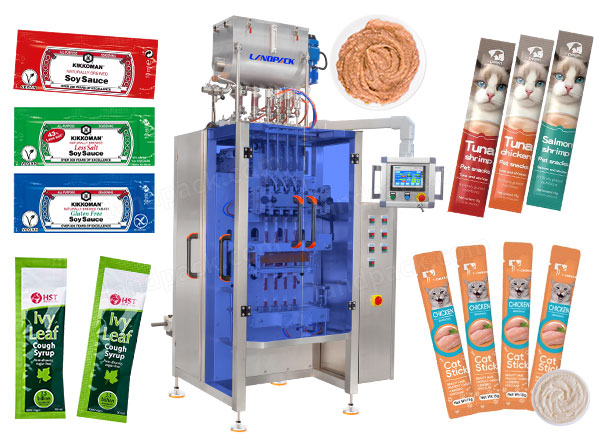

High Speed Cat Puree Cat Strip Treat Packing Machine

Application:

The cat strip packaging machine can produce round corners,flat strips,easy to tear,and the bags made have beautiful sealing and neat edges.It is suitable for lots of products, such as cat strip,honey, sauce, and so on.Suitable bag: 3/4 side sealing bag ; Pillow bag; Stick Pack.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

Precise Sealing & Smooth Cutting – Ensures a neat, high-quality package finish.

Customized Shape & Round Corner Cutting – Supports easy tear and various packaging needs.

Film Roll Bag Forming, Sealing, and Cutting – Guarantees stable performance.

Servo-Driven Film Pulling System – Provides stable and smooth operation.

Constant Temperature Heating System – Maintains stable heat with ±1°C precision.

Independent Servo-Controlled Auger System – Delivers high measurement accuracy.

Application:

The cat strip packaging machine can produce round corners,flat strips,easy to tear,and the bags made have beautiful sealing and neat edges.It is suitable for lots of products, such as cat strip,honey, sauce, and so on.

Videos Introduction:

Specification:

Model	LDSF-280	LDSF-300	LDSF-320
Track Number	4~6 Track	4~10 Track	4~12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 bags/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Round Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Working Process:

1. Smart HMI touch screen operating

2. Film roll working

3. Heating and stirring

4. Ceramic pump measuring and filling

5. Forming sealing bags

6. Servo driven film pulling

7. Irregular shape and round corner cutting

8. Finish bags and outlet
