Automatic Granule Nut Cashew Pouch Weighing Vertical Packing Machine VFFS Machine

Application:

This pouch-weighing vertical packing machine is suitable for filling all kinds of grain material, sheet material, strip material, and abnormity material, such as nuts, candy, melon seeds, chips, peanuts, nutlets, preserved fruit, jelly, biscuits, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1.Double servo, fast packing speed.

2.14 head scales with high weighing accuracy.

3.The height of the customized solution can flexibly meet the needs of customers to use the main machine of the bag feeding machine at the same time.

Application:

This pouch-weighing vertical packing machine is suitable for filling all kinds of grain material, sheet material, strip material, and abnormity material, such as nuts, candy, melon seeds, chips, peanuts, nutlets, preserved fruit, jelly, biscuits, confect, camphor ball, currant, almond, chocolate, filbert, corn, etc.

It can adopt all type of 3/4 sided seal bag, pillow bag, back sealing bag, back sealing bag with hole, etc.

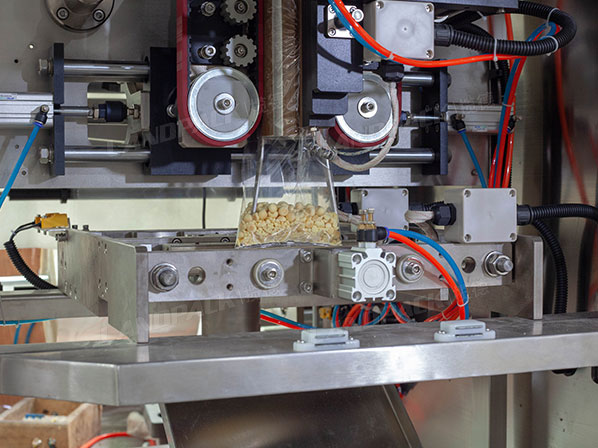

vertical filling machine

Videos Introduction:

Specification:

Type	LD-420	LD-520	LD-620	LD-720
Film width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Bag length	80-300mm	60-400mm	60-450mm	60-500mm
Bag width	60-200mm	100-250mm	65-300mm	65-350mm
Film roll diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Packing speed	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Making-bag volume	1000ml	2000ml	3000ml	5000ml
Film thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Power Supply	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3KW	220V, 50/60Hz, 3.2KW	220V, 50/60Hz, 3.5KW
Machine size (LWH)	(L)1217(W)1015(H)1343mm	(L)1488(W)1080(H)1490mm	(L)1488(W)1180(H)1550mm	(L)1780(W)1350(H)2050mm

Working Process:

1.Feeding nuts by the elevator

2.14 heads weigher to measure nuts

3.Form and seal the bag

4.Output the finished product
