Automatic Chutney Sachet Packaging Machine Multi Lane 4 Side Seal Liquid Packing Machine

Application:

It efficiently handles a wide range of substances such as chutney, facial creams, body foams, olive oil, greases, makeup products, pesticides, fertilizers, foliar nutrients, chili sauces, ketchups, peanut butter, condensed milk, and seasoning oils.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1. A multi-lane configuration designed for efficient and simultaneous packaging of chutney sauce into 4-side sealed pouches, ensuring high productivity and precision.

2. Features an air-shaft roll film device for smooth and consistent film feeding, enhancing packaging stability and reducing material waste.

3. Integrated multi-head ribbon printers provide clear and accurate date and batch information on each pouch, ensuring full traceability and compliance.

4. A material tank equipped with a level sensor allows real-time monitoring and automatic refilling, ensuring uninterrupted production flow.

5. An integrated system maintains sauce consistency by preventing ingredient settling and ensuring uniform heating for optimal filling performance.

6. Anti-leak nozzles are designed to eliminate drips and spills, ensuring clean, precise, and waste-free filling operations.

7. The multi-lane design and automated features significantly boost output while maintaining consistent packaging quality across all lanes.
Application:

This system is ideal for the automated packaging of liquid, semi-liquid, and viscous materials across various industries including food, pharmaceuticals, personal care, agriculture, and chemical products. It efficiently handles a wide range of substances such as chutney, facial creams, body foams, olive oil, greases, makeup products, pesticides, fertilizers, foliar nutrients, chili sauces, ketchups, peanut butter, condensed milk, and seasoning oils.
Videos Introduction:
Specification:

Model

LD-480Y LD-720Y LD-960Y
Track Number 4~6 Track 4~10 Track 4~12 Track
Filling Method 1.Piston pump;   2.Peristaltic Pump
Capacity Max.40 cycle/min
Sachet Size L:45--120mm; W:35-60mm L:45--120mm; W:35-90mm L:45--120mm; W:35-120mm
Film Width & Thickness Max.480mm;0.07-0.1mm Max.720mm;0.07-0.1mm Max.960mm;0.07-0.1mm
Sealing Type 3/4 sides sealing 3/4 sides sealing 3/4 sides sealing
Cutting Type 1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power 0.8 mpa  0.8m³/min; 2.8kw 0.8 mpa  0.8m³/min; 4.1kw 0.8 mpa  0.8m³/min; 5.5kw
DIM & WT 950*1470*1750mm; 300kg 1153*1654*1750mm; 400kg 1415*1686*2130mm; 500kg
Working Process:

1. Bag Formation

2. Chutney Filling

3. Sealing

4. Cutting

5. Batch Coding

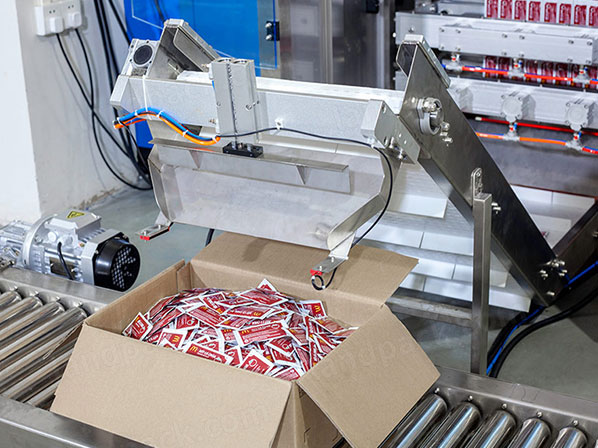

6. Counting

7. Finished Product Output
