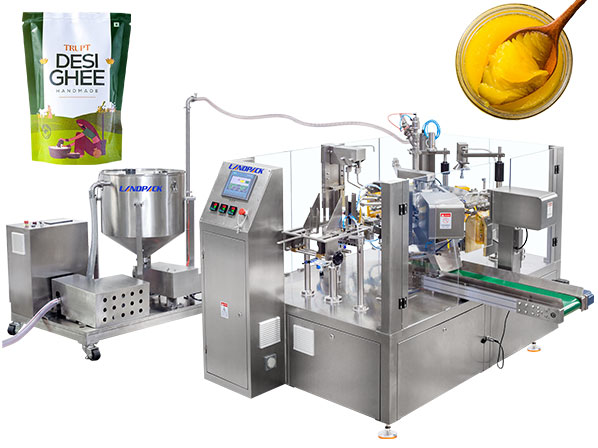

Automatic Stand Up Spout Pouch Premade Bag Doypack Ghee Oil Liquid Packing Machine

Application:

This packing machine widely used in filling various viscous liquids, such as ghee, oil, honey, cream, paste, sauce, lubricating oil, and viscous liquid products. Daily chemicals liquid products, such as sanitizer, dish wash, paint, lubricating oil, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Samples:
Specification:
Workflow:
Inquiry
Features:

1.Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm

4.The width of the bags could be adjusted by electrical motor.

5.It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.

6.The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

7.With different feeders changed to pack solid, liquid, thick liquid ,powder and so on

8.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Application:

This packing machine widely used in filling various viscous liquids, such as ghee, oil, honey, cream, paste, sauce, lubricating oil, and viscous liquid products. Daily chemicals liquid products, such as sanitizer, dish wash, paint, lubricating oil, hand soap, mouthwash, facial cleanser, face cream, various essential oils, etc.
Samples:
Specification:
Model LD-8200L/ LD-8250L
Packing material 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Size W: 70-200/100-250
Filling range 10-1000g/20-2500g
Packing speed 40-60 bags/min(speed is determined by the product filling quantity)
Average precision ≤ ±1%
Total power 2.5KW
Dimensions 1900mm*1570mm*1700mm(L*W*H)
Work flow giving bag→coding→opening→filling 1→filling 2→auxiliary→exhaust→heat sealing→forming and output product
Main standard parts 1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system
Workflow:

1.Rotor Pump for Feeding

2.Rotor Pump for Measruing

3.Contact Part Customized SS316

4.100L storage Hopper

5.Vertical bag giving station

6.Date printer

7.Zipper opener optional

8.Bag opener

9.Filling hopper

10.Conveyor for finished bags
