Automatic Multi Lane Stick Pack Liquid Juice Filling Packaging Machine Popsicle Sachet Machine

Application:

This multi-lane packing machine is suitable for packing low-viscosity liquid, such as juice, energy drinks, popsicles, etc. With 8 filling lanes, it can pack 200-320pcs/min, greatly improving working efficiency.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1. Advanced PLC system with an intuitive man-machine interface for easy operation and precise control.

2.Air cylinder-controlled metering pump ensures precise and accurate filling for consistent results.

3.Designed to produce ultra-small sachets with exceptional efficiency.

4.Eight filling lanes capable of handling sachets with a maximum length of 45mm, enabling high-speed production.

5.Equipped with an 8-head printer for clear and accurate printing of expiration dates, production dates, and batch numbers.

6.Zig-zag cutting functionality tailored to meet specific customer requirements for packaging.
Application:

This multi-lane packing machine is suitable for packing low-viscosity liquid, such as juice, energy drinks, popsicles, etc. With 8 filling lanes, it can pack 200-320pcs/min, greatly improving working efficiency.
Videos Introduction:
Specification:
Model LD-280BKL LD-560BKL
Track Number 4~6 Track 8~12 Track
Filling Method 1.Piston pump;   2.Peristaltic Pump;  3.Volumetric cup
Capacity Max.35 cycle/min
Sachet Size L:50--180mm; W:17-30mm L:50--180mm; W:17--30mm
Film Width & Thickness Max.280mm; 0.07-0.1mm Max.560mm; 0.07-0.1mm
Sealing Type  Backsealing/ Stick bag
Cutting Type 1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power 0.8 mpa  0.8m³/min; 2.8kw 0.8 mpa  0.8m³/min; 4.1kw
Working Process:

1. Air shaft loading roll film width 560mm

2 Ribbon date printer

3. Piston pump metering servo motor control fast Connect for Clamp Style

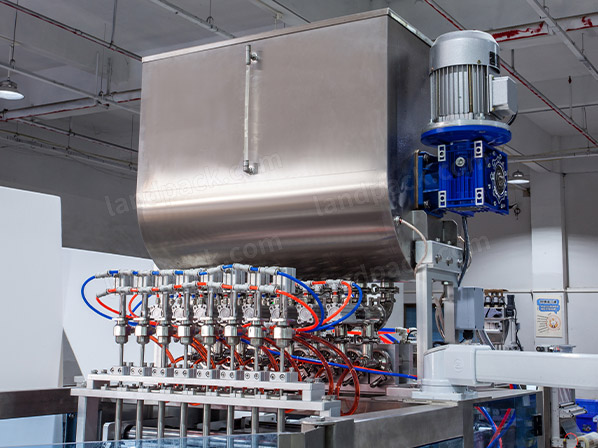

4. 8 Lanes filling Nozzle with Anti-drip Design

5. Cylinder control cutting film

6. Multi rollers system runs film smoothly and stably

7.Bag former for making the pillow sachet

8.Horizontal Sealing with teflon coating

9.Flat Cutting Sytem for better shape

10.Finished Conveyor
