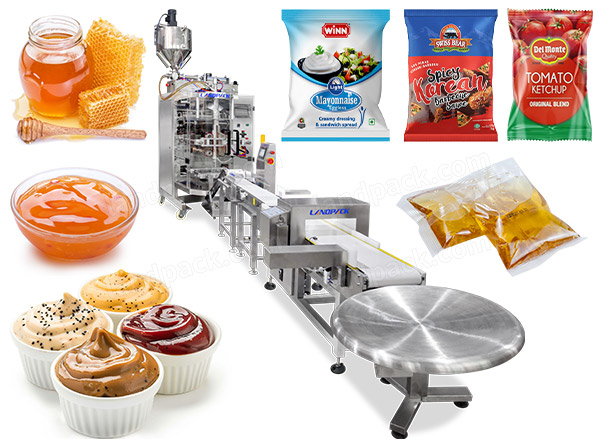

Fully Automatic Sachet Vertical Form Fill Seal Liquid Packing Packaging Machine

Application:

The automatic packaging machine can automatically complete the automatic quantitative measurement. automatic bag forming filling sealing cutting printing production date and other functions. Usually used to pack jelly, tomato sauce, oil, honey, etc products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Combined Parts:

Features:

1. Famous brand PLC control system, wide version touch screen, convenient to operate.

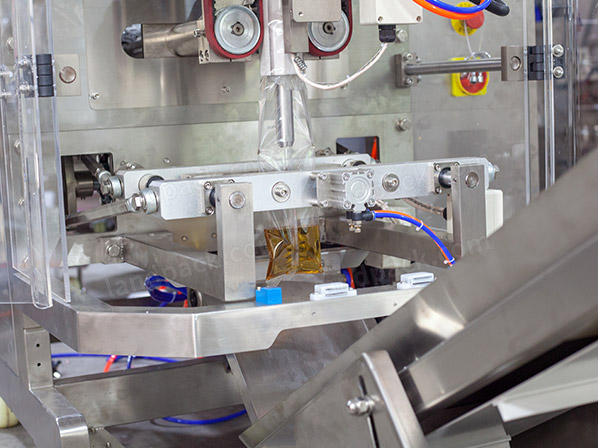

2. Servo film pulling system, Pneumatic horizontal sealing.

3. Perfect alarm system to reduce waste;

4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery when it equips with feeding and measuring equipment;

Application:

The automatic packaging machine can automatically complete the automatic quantitative measurement. automatic bag forming filling sealing cutting printing production date and other functions. Usually used to pack jelly, tomato sauce, oil, honey, etc products.

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Combined Parts:

LD series main frame

Screw metering machine

Screw infeed conveyor

Product conveyor
