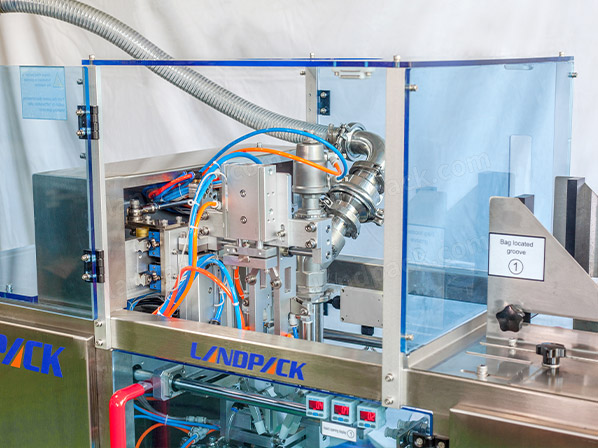

Multi-function Premade Pouch Mini Doypack Chutney Packing Machine

Application:

It is designed to efficiently handle a variety of liquid products such as chutney, ketchup, sauces, oils, soups, laundry detergents, liquid soaps, fabric softeners, shampoos, and more. The machine automates the processes of metering, filling, sealing, and packaging into premade pouches, ensuring high efficiency and consistent product quality.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

* Easy clean and avoid trash accumulated.

* Compact single station, pneumatic system used for safety running & low maitenance.

* From pouch pick up- open - fill - seal to output which is controlled by PLC.

* Auto pouch detecting sensor, no pouch no dump ensure material splash down.

* Interlock Safety, CE application - auto stop when the door is open.

Application:

It is designed to efficiently handle a variety of liquid products such as chutney, ketchup, sauces, oils, soups, laundry detergents, liquid soaps, fabric softeners, shampoos, and more. The machine automates the processes of metering, filling, sealing, and packaging into premade pouches, ensuring high efficiency and consistent product quality.

Videos Introduction:

Specification:

Type
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag
Upgraded Bag Type	(Need additional purchase of functional device)	Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device)
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0-60 bags/min	0-15 bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm (5-20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65 Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case

Working Process:

1.Feeding Bag

2.Open Bag

3.Filling

4.Sealing
