Multifunction Multi Lane Sachet Liquid Filling Machine for Ketchup Tomato Sauce

Application:

Multifunction Multi Lane Sachet Liquid Filling Machine for Ketchup Tomato Sauce, it is suitable for many kinds of liquid products, such as tomato sauce, ketchup, oil, jelly, shampoo, facial cream, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Packing type:

Features:

1. The biggest multi lane packing machine which can run max roll film width 1200mm.

2. Air-shaft film roller easy to change the new film roller.

3. Multi heads Ribbon date printer to print date info on each lane.

4. UV disinfection lamp to ensure the hygiene of the packaging film.

5. Double layer material tank has the function of stirring and heating to ensure the sauce have better fluidity.

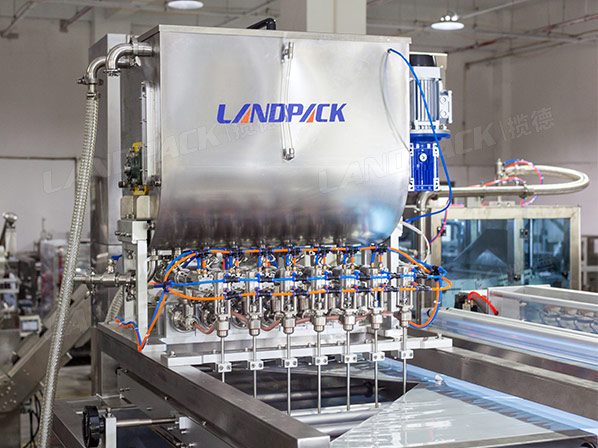

6. Anti leaking filling nozzles have high metering accuracy.

7. Stable pulling film to cut exact position.

8. Twice horizontal sealing to ensure a good sealing.

9. Reliable electrical component.

Application:

This machine is suitable for packaging of material in liquid and sauce state, such as: tomato sauce, syrup, ketchup, honey, mayonaise, ice lolly, cat liquid snack, Sachet Shampoo..etc.

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4~6 Track	4~10 Track	4~12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
