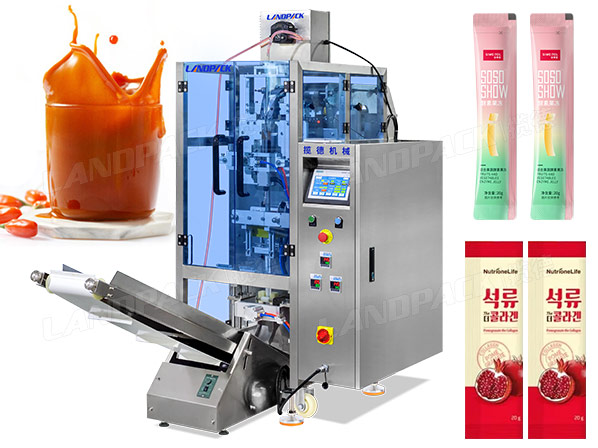

Single Lane Juice Stick Pack Machine With From Filling Making Bags Sealing Coding Function

Application:

Single lane juice stick pack machine with from filling making bags sealing coding function, it is recommended for a wide variety of products including fruit juice, liquid soap, detergent, syrup, ketchup, oil, chili sauce, honey, jam, shampoo, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1.Fully automatic from filling, making bags, sealing, coding, perfect save your labor cost

2.Siemens touch screen, smart and simple operation

3.Peristaltic pump dosing, high precision

4.Servo Control film pulling device, nice sealing without wrinkles

5.Anti-leak line design to ensure firm sealing; round corner designe to ensure perfect curvature

Application:

Single lane juice stick pack machine with from filling making bags sealing coding function, it is recommended for a wide variety of products including fruit juice, liquid soap, detergent, syrup, ketchup, oil, chili sauce, honey, jam, shampoo, etc.

It can adopt all type of 3/4 sided seal bag, stick bag, etc.

Videos Introduction:

Specification:

Model	LDBK-140L
Dosing Method	A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product)
Hopper type	A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank
Packing speed	20-45 bag/min (1200-2700bag/min)
Bag size range	L: 40-150mm; W: 15-100mm
Bag Seal type	Stick /pillow
Cut type	A: Teeth cut B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm)
Film thickness	0.05-0.1mm
Film material	Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper
Drive method	Electricity + Pneumatic
Control style	PLC control system+English/Chinese screen (Or customized panel)
Power	1.8KW
Power supply	AC220V, 1phase, 50Hz/ AC380V, 3phases, 50Hz
Air consumption	0.4 cbm/min, 0.8Mpa
Dimension	7507101780 mm
HS CODE for export	84223030

Working Process:

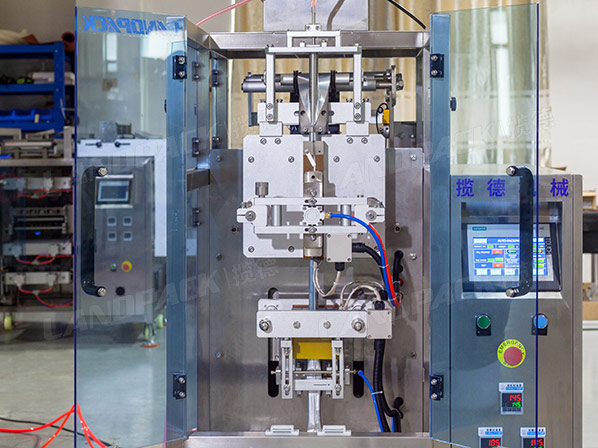

1.Siemens touch screen, one button to adjust speed, easy to operate

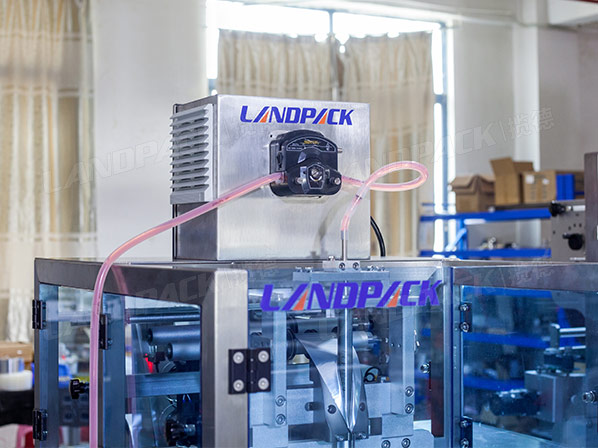

2.Customized peristaltic pump for precise liquid metering

3.Servo control reciprocating film pulling, ensures nice sealing without wrinkles

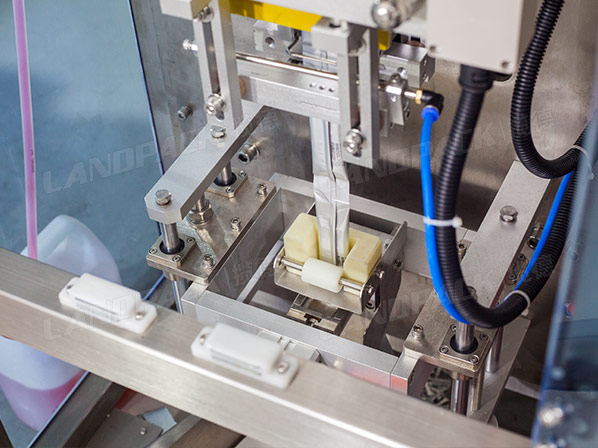

4.Anti-leak line is added on the top seal to ensure perfect and firm sealing performance

5.Rounded corner design, ensures the gorgeous curvature for the bag
