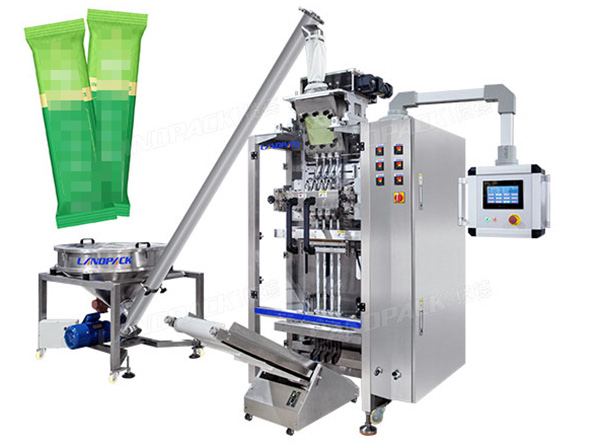

Automatic 4 Lane Stick Packing Machine Coffee Protein Powder Multi Track Packing Machine

Application:

Automatic multilane powder stick packing machine, it is suitable for many kinds of powder products, such as flour, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, sugar, flavoring, etc.

Details:

Model:LD-280BF/ 560BF

Lane Number:4-12 Line

Filling Method: Auger filling by servo motor

Capacity: Max.35 cycle/ min

Sachat Size; L:50-180mm; W:17-30mm

Film weidth & Thickness:Max.560mm, 0.07-0.10mm;

Sealing type: Back sealing/Stick bag

Cutting type: 1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Packing Type:

Features:

1.Multi lanes machine can produce multi lanes bags at same time.

2.Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3.Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

4.Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

5.High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

6.PLC controller, high function and control the whole machine’s work steps.

Application:

Automatic multilane powder stick packing machine, it is suitable for many kinds of powder products, such as flour, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, sugar, flavoring, etc.

Videos Introduction:

Specification:

Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	Auger filling by servo motor
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting;2.Zig zag cutting;3.Round cutting;4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

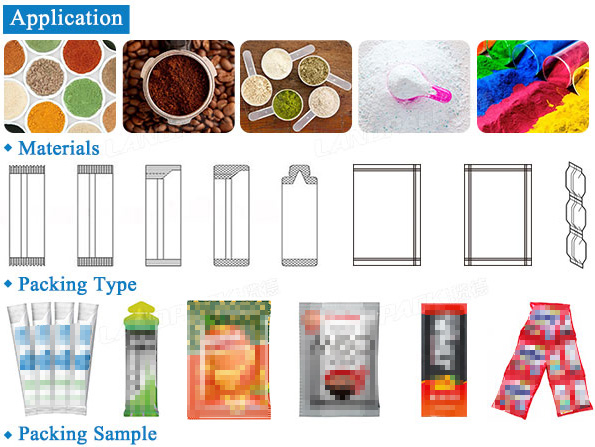

Packing Type:

1. Sealing type: Back sealing/Stick bag;

2.Cutting type: Straight cutting; Zig zag cutting; Round cutting; Irregular
