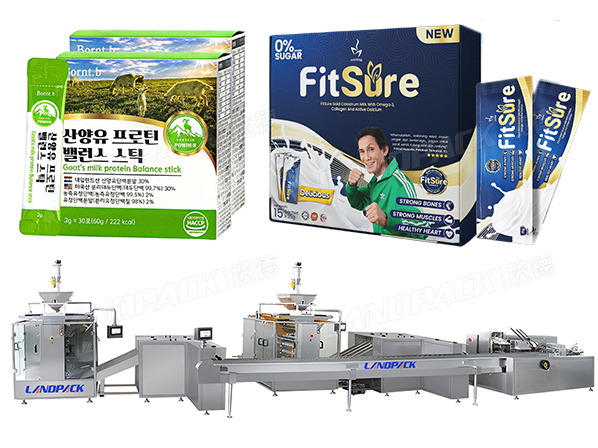

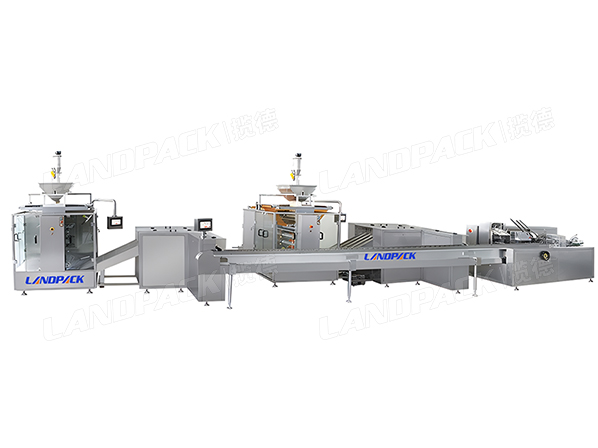

Automatic Multi Lane Milk Powder Stick Pack Packaging Boxing Machine System

Application:

This System is designed for packing all kinds of powders,such as: milk powder,pea starch,cocoa powder,corn starch,tapioca starch,flour,cake powder,rice powder,coffee powder and spice, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Sealing the bags well without any waste film, because of multiple rolls to pull the film for running smoothly, the cutter made of high hard stainless steel, it seal the bag with clear texture, no film stick on the sealing device.

2. The fillet bag is with the easy to tear mark place, so the customers open the bag easier and convenient.

3. Low maintenance cost : The machine is controlled by the timing belt , Independent temperature control table for each heating pipes, which easy to find and solve the problem.

4. Powder vacuum feeding machine to transport the powder from the storage hopper to the measurement device automatically.

5. The machine would pull the film, print the code by laser , form the bag, measure and fill the powder into bag, sealing and output the finished products automatically. No need worker to operate such function, during the machine working.

Application:

This System is designed for packing all kinds of powders,such as: milk powder,pea starch,cocoa powder,corn starch,tapioca starch,flour,cake powder,rice powder,coffee powder and spice, etc.

Videos Introduction:

Specification:

Multi Lane Stick Packing Machine Parameters
Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min
Overall dimension	4000mm1580mm1850mm
customizable

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
