Automatic Multi Lane Stick Pack Milk Powder Packaging Boxing Production Line

Packaging Line Composition:

This packaging and boxing system is consist of LD-560BK Multi-lane stick pack powder packaging machine, a Sorting bag equipment and a boxing machine. It can realize stick pack bag packaging into a box.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Automated Multifunctionality: This machine seamlessly performs tasks such as measuring, bag making, sealing, cutting, counting, and product conveyance.

2. Concealed Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.

3. Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel, meeting the requirements for pharmaceutical and food production.

4. Easy Mobility with Casters: Equipped with casters, the equipment can be effortlessly moved and positioned as needed.

5. Automatic Alarm System: The machine features an automatic alarm system, enhancing safety and preventing material wastage.

6. Efficient Film Usage: By minimizing film waste, this equipment optimizes material usage during the packaging process.

Application:

This Automatic Stick Pack Milk Powder Packaging Boxing Production Line is suitable for the automatic packaging of particles with good fluidity in food, health care, and pharmaceutical industries such as milk powder, protein powder, instant coffee powder, fruit enzyme powder, etc.

Videos Introduction:

Specification:

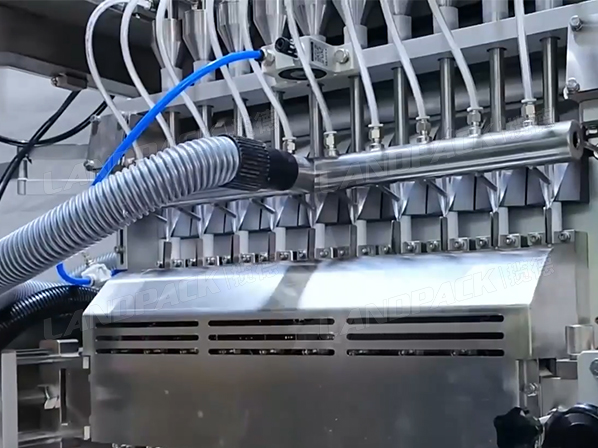

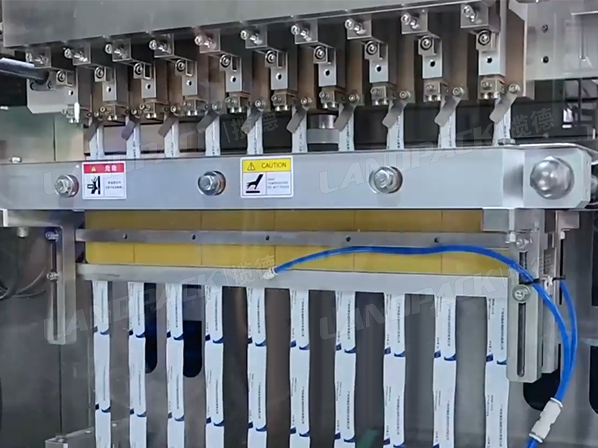

MULTI-LANE STICK PACK POWDER PACKAGING MACHINE
Model	LD560BK
Lane number	3-10 Lanes
Filling Method	1. Long auger; 2. Short auger; 3. Short auger with cup
Capacity	Max.40 cycles/min
Sachet size	L: 50-180mm; W: 20-90mm
Film width & Thickness	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/ Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut
Air & Power	0.8Mpa, 0.8m³/min, 5.5kw
Dimension & weight	168513002005mm; 550kg

BOXING MACHINE
Model	LD200ZH
Paper type	250-400g/²(Boxes need come with pre-fold over)
Capacity	30-60 boxes/min
Box type	Gusseted tongue type; Glue spray type
Count way	Fixed number type; Numerable type; Manipulator counting
Boxing way	Orderly type; Unorderly type
Air & Power	0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW
Workflow	Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish
