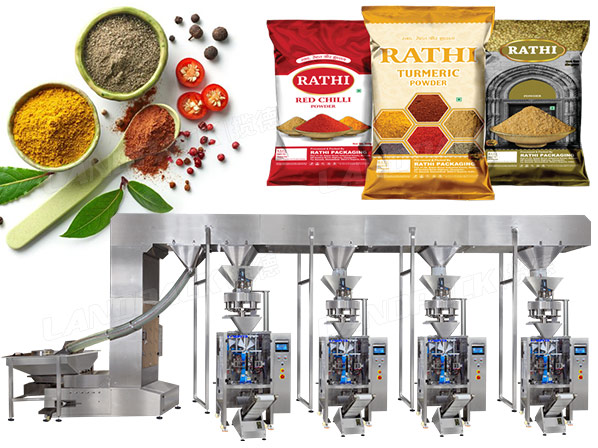

Automatic Spice Powder Pouch Packing Machine Powder Packaging Line

Application:

It's suitable for automatic packing spice powder, detergent powder, washing powder, bleaching powder, coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1.The machine can automatically complete the product measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing, and cutting.

2.The machine features easy operation, simple cleaning, and maintenance.

3.High-sensitive fiber optic photo sensors can automatically trace color marks accurately.

4.PLC control system combined with a touch screen, can easily set can change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen.
Application:

It's suitable for automatic packing spice powder, detergent powder, washing powder, bleaching powder, coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.
Videos Introduction:
Specification:
Model
LD-320C
LD-420C
LD-520C
Film Width
Max.320mm
Max.420mm
Max.520mm
Filling Range
150-800ml
150-1500ml
150-2000ml
Bag Length
80-240mm
80-300mm
80-350mm
Bag Width
50-150mm
60-200mm
80-250mm
Packaging Speed
5-70 bags/min
5-60 bags/min
10-50 bags/min
Machine Power
220V, 50/60HZ, 2KW
220V, 50/60HZ, 2.2KW
220V, 50/60HZ, 3KW
Machine Size(L*W*H)
1185*935*1245mm
1217*1015*1343mm
1488*1080*1490mm
Machine Weight
550KG
650KG
750KG

Working Process:

Intelligent control screen, one-click start

Z-type material conveyor loading

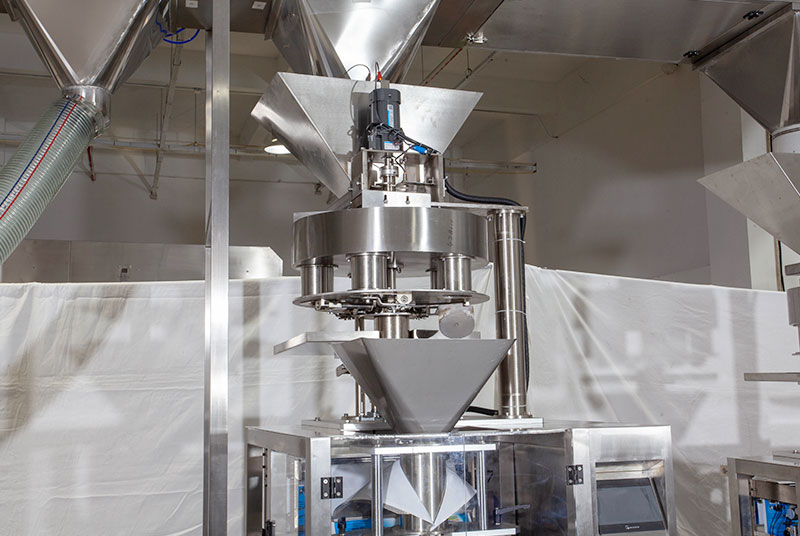

Volume measuring cup measurement

Automatic filling

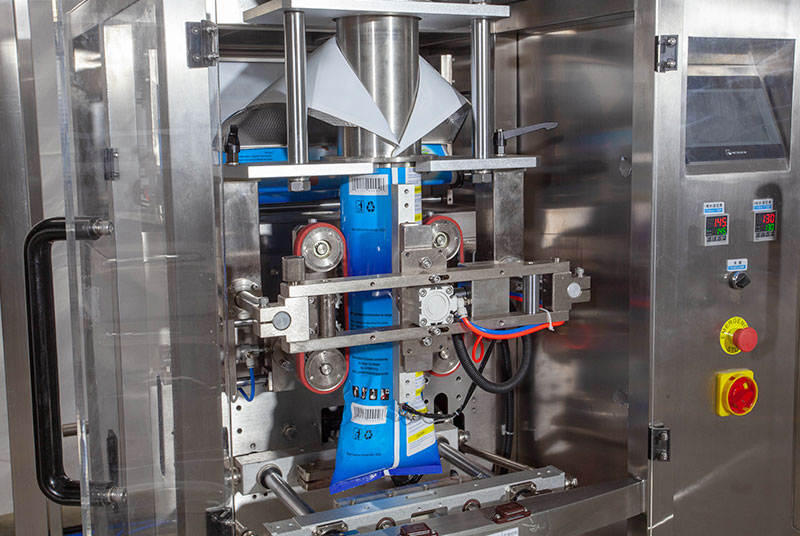

Bag making and sealing
