Powder Mixer | |
Part name | Powder mixer 200L |
Material | SS304 |
Composition | The horizontal ribbon mixer consists of a U-shaped container, ribbon mixing blades, and transmission parts |
Feature | Horizontal cylinder, U-shaped mixer cylinder |
Full volume | 250L |
Effective capacity | 200L |
Rotating speed | 46rpm |
Power supply | 3P AC208-415V 50/60Hz |

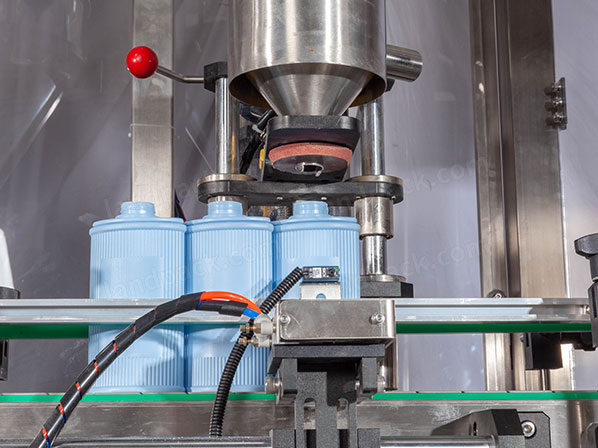

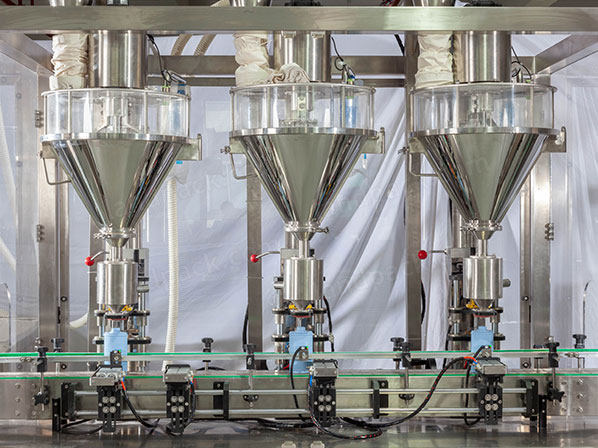

3 Heads powder filling machine | |
Filling heads | Three screws dosing device |
Material of Nozzle | SS304, meets GMP production requirements |
Material of machine | SS304, 1.5mm thickness |
Filling Speed | 35-40 bottles/minute. Can be adjusted to prevent bottle overflow |
Filling form | Three screw filler |
Filling sensor | Included, No bottle no filling |
Control method | PLC+Touch screen |
Air consumption | 0.6MPa |
Dust removal device | Yes |
Cap Pressing Machine | |
Item | Press capping machine |
Capping Speed | 50-60 bottles/min |
Bottle and cap size | Can be customized and adjustable |
Air pressure(mpa) | 0.3-0.5 |
Voltage | 220V/50HZ |
Weight | 100 kgs |
