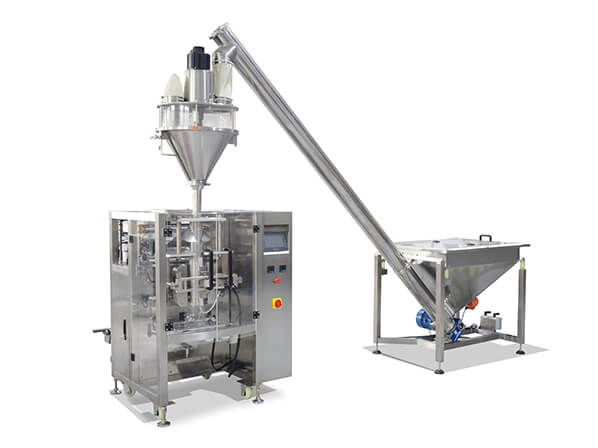

Automatic Powder Packing Machine with Screw Filling Tube LD-420D/ LD-520D

Application:

Suitable For Automatic Packaging Of Various Kinds Of Powder: Milk, Coffee, Chili Powder, Spices, Sugar, Soap Powder, Curry Powder, Washing Powder etc.

Details:

Model:LD-420

Film Thickness:0.04-0.08mm

Bag Length:80-300mm

Bag Width:60-200mm

Film Roll Diameter:Max.320mm

Pakaging Rate:5-60bag/min

Film Width:Max.420mm

Measurement Range:150-1500ml

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Feature:

Application:

Samples:

Specification:

Combined parts:

Feature:

Simple construct, reliable circulator, easy maintenance.

The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature.

Simultaneous code control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter.

Application:

Suitable for automatic packaging of various kinds of powder: milk,coffee, chili powder, spices,sugar, soap powder, curry powder,washing powder etc.

Samples:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Combined parts:

ZV series main frame

Screw metering machine.

Screw infeed conveyor

Product conveyor
