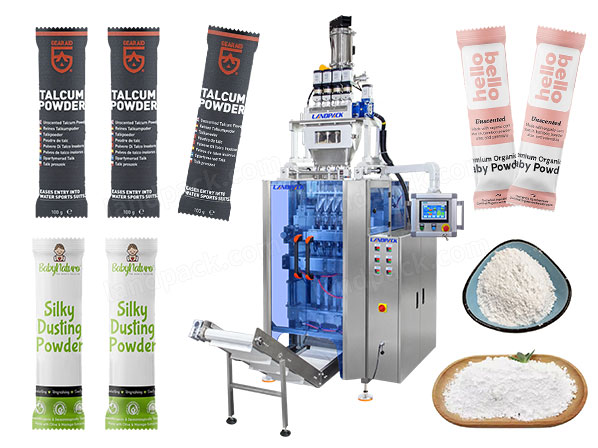

Multi Lane Auger Filling Talcum Powder Stick Bag Packing Machine

Application:

This equipment is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as talcum powder, medical powder, 3 in 1 coffee powder, chicken essence, seasoning powder, chemical powder, protein powder, milk powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1.Equipped with a Siemens PLC-based advanced control system and a user-friendly color touch interface for streamlined operation.

2.Utilizes precision servo-driven heat sealing for flawless vertical bag sealing, eliminating the need for adhesives and ensuring a refined finish.

3.All surfaces in contact with materials are constructed from SUS304 stainless steel, meeting GMP standards and offering superior corrosion and contamination resistance.

4.A durable protective enclosure safeguards heat-emitting and mechanical parts, enhancing operator safety and minimizing downtime.

5.Integrated premium casters facilitate smooth mobility across the production area.

6.Built-in safety mechanisms, including automatic shutdown during overheating or irregularities, ensure sustained reliability and equipment protection.
Application:

This equipment is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as talcum powder, medical powder, 3 in 1 coffee powder, chicken essence, seasoning powder, chemical powder, protein powder, milk powder, etc.
Videos Introduction:
Specification:
Model
LD-280BF
Production capacity
140-210 bags/min
Diameter of the film roll
Maximum 300mm
Packaging film width
17-30 mm
Outer bag size
The longest 180mm widest 30mm product packaging
Air pressure
0.5-0.7Mpa
Machine noise
Less than 80db(A)decibel
Heating power
3.5 Kw
Total weight of the machine
350KG
Machine size
1385mm*918mm*2005mm

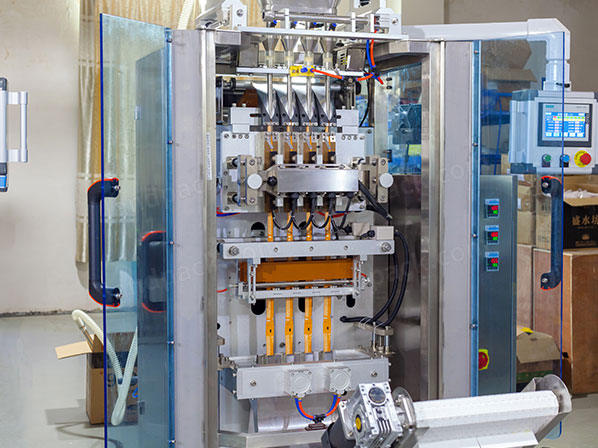

Working Process:

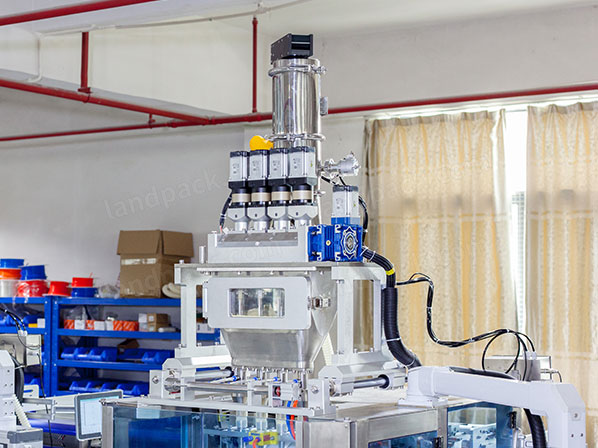

Vacuum feeder is more hygienic conveying of materials

Air sharft roll film device

Date coding

Screw metering device with anti-leaking device

Pulling film is under servo motor driven

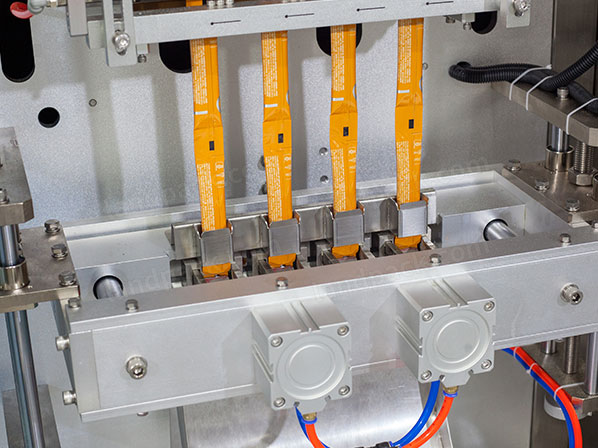

Pull packing film and sealing

Feed powder into sachet

Cutting and output the finished product
