Automatic Snus Snuff Vertical Form Fill Seal VFFS Packing Packaging Machine

Application:

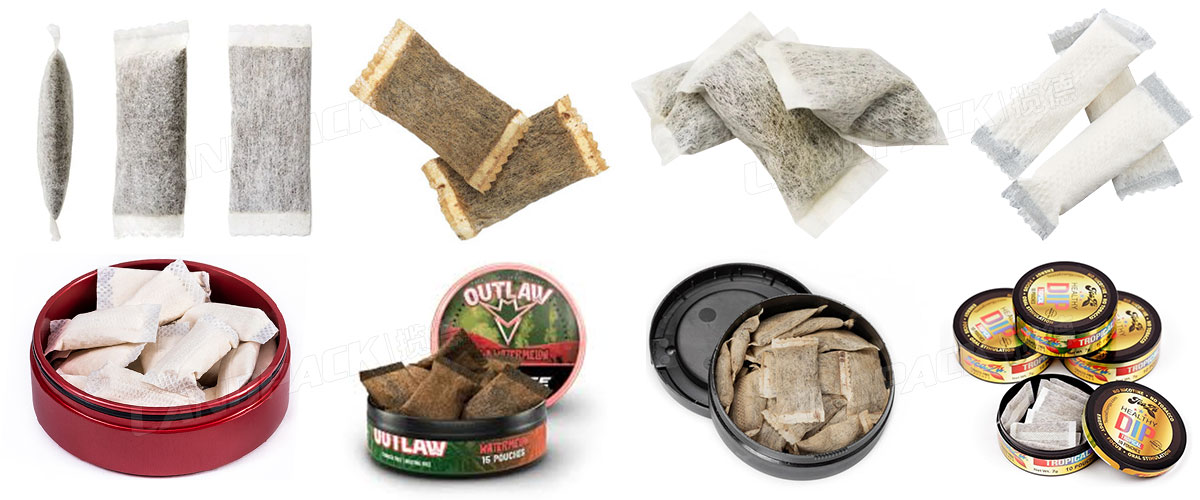

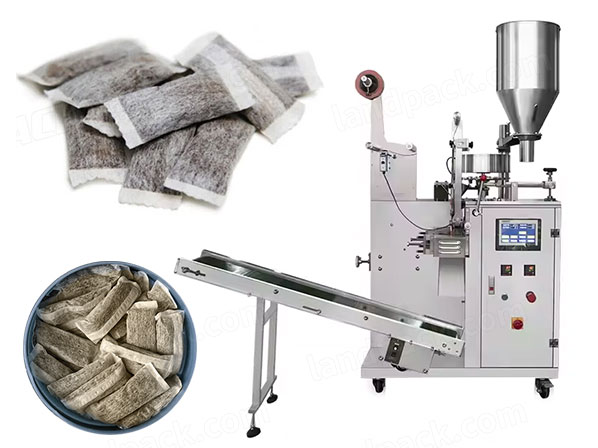

This is a servo-driven vertical running, fully automatic, high-speed form fill seal machine.for packing of smokeless chewing tobacco in nonwoven filter paper and other material similar to snus or snuff.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

1.The equipment frame is made of food-grade 304 stainless steel for safety protection. An Independent temperature control system is adopted, the temperature control is accurate, and the sealing is beautiful and smooth.

2.Servo motor film pulling, PLC control, touch screen control, automatic control capability of the whole machine, high reliability and intelligence, high speed, and high efficiency.

3.It can be automatically adjusted through the touch screen to correct the deviation of the sealing and the incision, and the operation is simple.

4.The touch screen can store a variety of packaging process parameters for different products, which can be used at any time without adjustment when changing products.

5.The machine is equipped with a fault display system, which can help troubleshoot in time and reduce the requirement for manual operation.

Application:

This is a servo-driven vertical running, fully automatic, high-speed form fill seal machine.for packing of smokeless chewing tobacco in nonwoven filter paper and other material similar to snus or snuff.

Videos Introduction:

Specification:

Model	LD-320D	LD-420D	LD-520D
Film Width	Max.320mm	Max.420mm	Max.520mm
Filling Range	150-800ml	150-1500ml	150-2000ml
Bag Length	80-240mm	80-300mm	80-350mm
Bag Width	50-150mm	60-200mm	80-250mm
Packaging Speed	5-70 bags/min	5-60 bags/min	10-50 bags/min
Machine Power	220V, 50/60HZ, 2KW	220V, 50/60HZ, 2.2KW	220V, 50/60HZ, 3KW
Machine Size（LWH）	11859351245mm	121710151343mm	148810801490mm
Machine Weight	550KG	650KG	750KG

Optional:

Air compressor

Nitrogen-generating equipment

Labeling machines

Date printer
