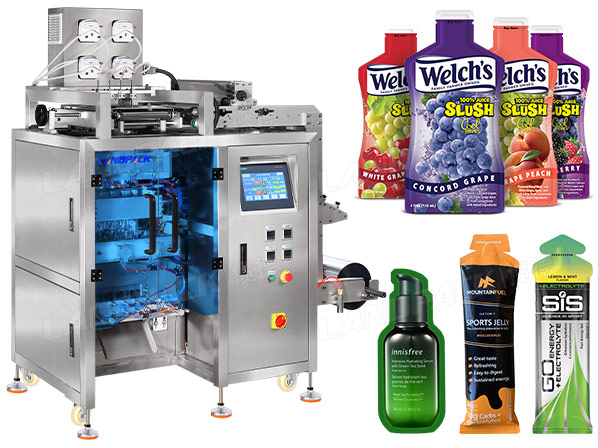

High Speed Multi Lane Liquid Sachet Counting and Packaging Machine

Application:

This machine can high speed pack liquid material, such as lotion, cream, energy gels, cream, honey, and paste materials in the chemical, medical, and food industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Workflow:

Features:

1. Peristaltic pump measuring and filling, suitable for good fluidity liquid products,wide range of applications.

2.Servo pulling film system, working stably and smoothly.

3.Automatic counting slop conveyor, connecting with box packing machine, to achieve fully automatic packaging line.

4.Sensor detects and counts the sachets correctly, adjustable counting number with high precise.

5.Beautiful finished sachet package, clear laser coding on sachets.

Application:

This machine can high speed pack liquid material, such as lotion, cream, energy gels, cream, honey, and paste materials in the chemical, medical, and food industries.

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4~6 Track	4~10 Track	4~12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm;0.07-0.1mm	Max.720mm;0.07-0.1mm	Max.960mm;0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Workflow:

Peristaltic pump measuring and filling → Servo pulling film system → packaging cutting and sealing → Flipping and unloading mechanism → Automatic counting slop conveyor
