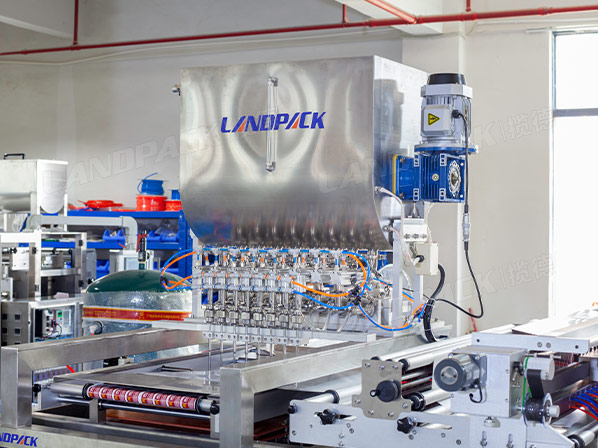

High Speed Sachet Packing Machine Liquid Sauce Multi Lane Packing Machine

Application:

Multifunction multi lane sachet liquid filling machine is suitable for many kinds of liquid products, such as chili sauce, paste, tomato sauce, ketchup, oil, jam, jelly, shampoo, facial cream, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Optional:

Features:

1.Heat and stir

2.Automatically connect the front-end incoming pipe

3.Counting electric eye, once the number is reached, the machine automatically stops working

Application:

Multifunction multi lane sachet liquid filling machine is suitable for many kinds of liquid products, such as chili sauce, paste, tomato sauce, ketchup, oil, jam, jelly, shampoo, facial cream, etc.

It can adopt all type of 3/4 sided seal bag, sachet, carton box, etc.

liquid sachet packaging machine

Videos Introduction:

Specification:

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min; 2.8kw	0.8 mpa, 0.8m³/min; 4.1kw	0.8 mpa, 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Optional:

1.8 lane 4 sides sealed ketchup sauce counting packing machine

2.Air-sharf roll film device

3.Multi-heads Ribbon date printer to print date info on each lane

4.Material tank includes the level sensor

5.Stirring & Heater

6.Filling nozzle includes the anti-leaking device
