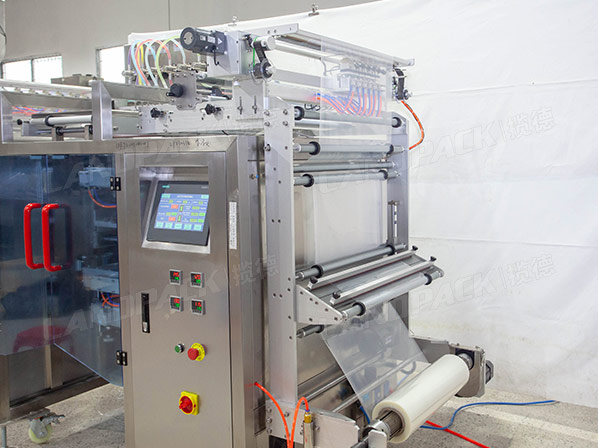

Automatic Various Flavors Popsicle Juice Packing Machine

Application:

This machine is suitable for packaging different types of liquids at the same time, such as juices of different flavors, Ice Lolly, olive oil, soy sauce, juice, honey, jam, mayonnaise, ketchup; shampoo, conditioner, hand soap, hand-washing gel, toner, lotion, makeup remover.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos:
Samples:
Workflow:
Inquiry
Features:

1. Multi lanes machine can produce multi lanes bags at same time;

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity;

3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc;

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment;

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position;

6. PLC controller, high function and control the whole machine’s work steps.

7. One machine produces different products at the same time,save cost;

8. Peristaltic pump feeding, clean and hygienic, saving space;

9. this machine is 6 lanes packing machine, high speed and high efficiency around 120-150 sachet/ min.
Application:

This machine is suitable for packaging different types of liquids at the same time, such as juices of different flavors, Ice Lolly, olive oil, soy sauce, juice, honey, jam, mayonnaise, ketchup; shampoo, conditioner, hand soap, hand-washing gel, toner, lotion, makeup remover.


Videos:
Samples:
Model LD-280BKL LD-560BKL
Track Number 4~6 Track 8~12 Track
Filling Method 1.Piston pump;   2.Peristaltic Pump;  3.Volumetric cup
Capacity Max.35 cycle/min
Sachet Size L:50--180mm; W:17-30mm L:50--180mm; W:17--30mm
Film Width & Thickness Max.280mm; 0.07-0.1mm Max.560mm; 0.07-0.1mm
Sealing Type  Backsealing/ Stick bag
Cutting Type 1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power 0.8 mpa  0.8m³/min; 2.8kw 0.8 mpa  0.8m³/min; 4.1kw
Workflow:

Peristaltic pump feeding → Pull film → Filling → Sealing → finished product
