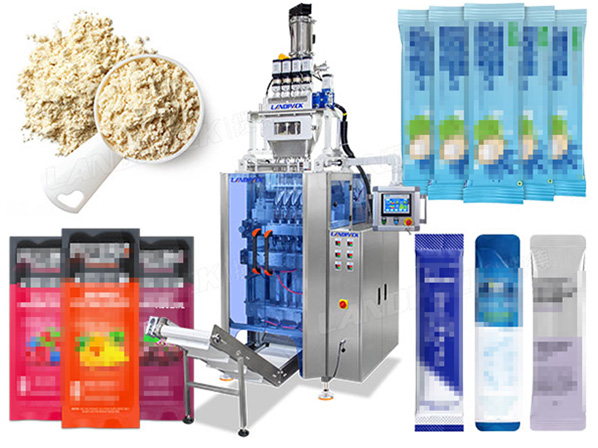

Multi Lane Nutrition Powder Coffee Stick Packing Machine

Application:

This multilane stick packing machine, it is suitable for many kinds of powder products, such as chili powder, seed powder, milk tea powder, pharmaceutical powder, herb powder, dry powder, vibro cinnamon powder, flour, milk powder, 3 in 1 coffee powder, glucose, medical powder, nutrition powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos:
Samples:
Cutting type:
Inquiry
Features:

1. Sealing the bags well without any waste film, because of multiple rolls to pull the film for running smoothly, the cutter made of high hard stainless steel, it seal the bag with clear texture , no film stick on the sealing device.

2. The fillet bag is with the easy to tear mark place, so the customers open the bag easier and convenient.

3. Low maintenance cost : The machine is controlled by the timing belt , Independent temperature control table for each heating pipes, which easy to find and solve the problem.

4.Powder vacuum feeding machine to transport the powder from the storage hopper to the measurement device automatically.

5.The machine would pull the flim, print the code by laser , form the bag, measure and fill the powder into bag, sealing and output the finished products automatically. No need worker to operate such function, durning the machine working.
Application:

This multilane stick packing machine, it is suitable for many kinds of powder products, such as chili powder, seed powder, milk tea powder, pharmaceutical powder, herb powder, dry powder, vibro cinnamon powder, flour, milk powder, 3 in 1 coffee powder, glucose, medical powder, nutrition powder, etc.


Videos:

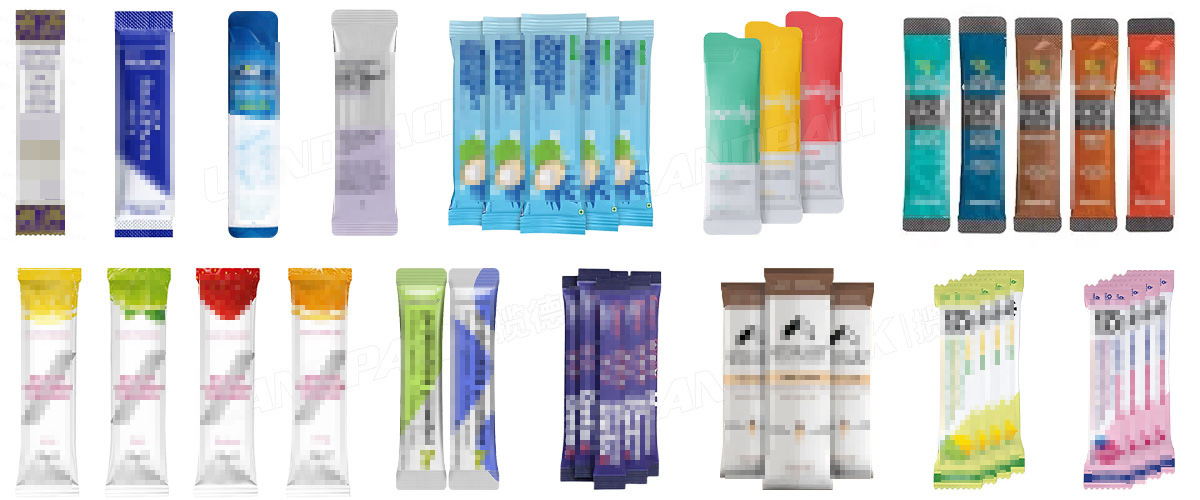

Samples:
 Model  LD-280BF  LD-560BF
 Lane number  4-6 Line  8-12 Line
 Filling Method  1.Volumetric cup;   2. Weigher
 Capacity  Max.35 cycle/ min
 Sachat Size  L:50-180mm; W:17-30mm  L:50-180mm; W:17-30mm
 Film weidth & Thickness  Max.280mm, 0.07-0.10mm  Max.560mm, 0.07-0.10mm
 Sealing type  Back sealing/Stick bag  Back sealing/Stick bag
 Cutting type  1.Straight cutting;   2.Zig zag cutting;   3.Round cutting;   4.Irregular
 Air & Powder  0.8Mpa 0.8m3/min; 3.5kw   0.8Mpa 0.8m3/min; 5.5kw
 Dimension & weight  1385*918*2005mm;350kg  1685*1300*2005mm;550kg
Cutting type:

Straight cutting; Zig zag cutting; Round cutting; Irregular.
