High Speed Multi Lane Powder Stick Pack Boxing And Packing Line

Packaging Line Composition:

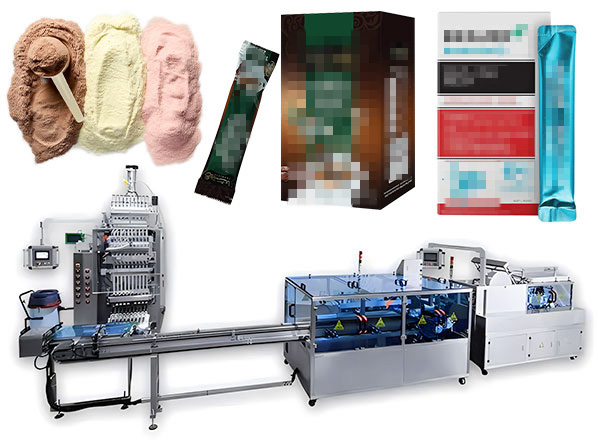

This packaging and boxing system is consist of LD-560BF Multi-lane stick pack powder packaging machine, a Sorting bag equipment and a boxing machine. It can realize stick pack bag packaging into a box.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, boxing and other functions;

2. The heat-generating parts and moving parts are hidden in the protective cover;

3. The contact part of the box and material is made of 304 stainless steel, which meets the requirements of medicines and food production;

4. The equipment is equipped with casters for easy handling and movement.

5. Automatic alarm protection, saving materials, and no wasting film.

Application:

This high speed multi lane powder stick pack boxing and packing line, it is suitable for automatic packaging of powder products with poor fluidity in food, health care, and pharmaceutical industries, such as protein powder, meal replacement powder,milkshake powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.

Videos Introduction:

Specification:

Multi Lane Stick Packing Machine Parameters
Model	LD-280BF	LD-560BF
Lane number	4-6 Line	8-12 Line
Filling Method	1.Volumetric cup; 2. Weigher
Capacity	Max.35 cycle/ min
Sachat Size	L:50-180mm; W:17-30mm	L:50-180mm; W:17-30mm
Film weidth & Thickness	Max.280mm, 0.07-0.10mm	Max.560mm, 0.07-0.10mm
Sealing type	Back sealing/Stick bag	Back sealing/Stick bag
Cutting type	1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Irregular
Air & Powder	0.8Mpa 0.8m3/min; 3.5kw	0.8Mpa 0.8m3/min; 5.5kw
Dimension & weight	13859182005mm;350kg	168513002005mm;550kg

Fully Automatic Cartoning Machine Parameters
Max box size	350mm320mm100mm（LWH）
Min box size	70mm40mm15mm（LWH）
Speed	60-100 box/min
Available paper	300-350 g/m³
Power supply	220V/50HZ
Max power	About 1.2KW
Weight	1500kg
Air pressure	0.6-0.8MPa
Air consumption	200-260L/min
Overall dimension	4000mm1580mm1850mm
customizable

Packing type:

1.Sealing type:4 sides sealing;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
