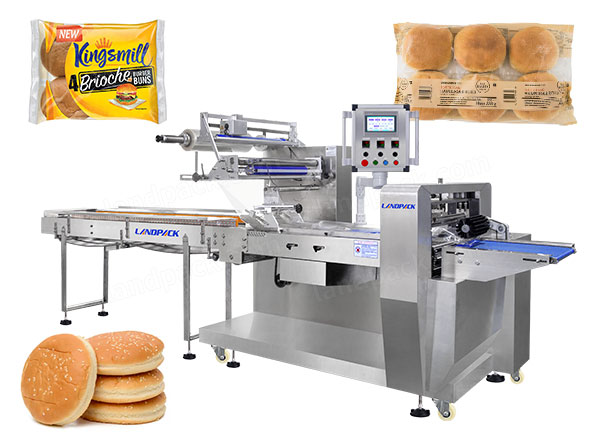

Automatic High Speed Flow Wrapping Machine Burger Bun Horizontal Packing Machine

Application:

Mainly used for packing various regular and solid products such as cake, bread, biscuit, candy, chocolate, daily necessities,face mask, chemical product, medicine, hardware and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

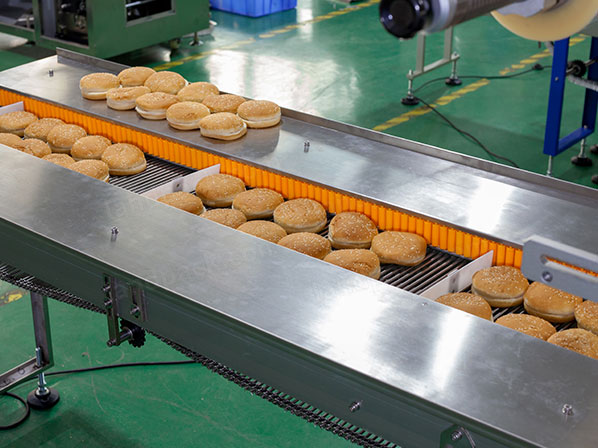

1.Net chain conveyor system: Designed for easy cleaning, ensuring hygiene and maintenance efficiency.

2.Ball bearing design: Reduces friction between the movable panel and the product, ensuring accurate material levels and preventing damage to delicate items like buns.

3.Auxiliary feeding for bag-making machine: For loose buns that are not in boxes, an auxiliary feeding system is added to improve packaging efficiency, ensuring better handling and protection during the packing process.

4. Versatile packaging options: The machine can handle a variety of products, offering flexibility to package different sizes and shapes of buns or similar items.

Application:

Automatic airless package mayonnaise vertical pouch packaging machine suitable for mayonnaise, sauces, ketchup, peanut butter, chocolate sauce, egg white, jam, chili sauce, lotus seed paste, bean paste, and other food stuffing as well as drinks of large bulk.

Videos Introduction:

Specification:

Model	LP-250	LP-350	LP-450	LP-600	LP-700	LP-800	LP-900
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm	Max.800 mm	Max.900mm
Bag length	65-190mm or120-280mm	65-190mm or120-280mm	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min	20-150 bags/min	20-130 bags/min	20-120bag/min	20-100 bags/min
Power	220V,50/60Hz,2.4kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,4.5kw	220V,50/60Hz,4.5kw
Machine size	（L）3770（W）720（H）1420mm	（L）4030（W）770（H）1420mm	(L)4030(W)820(H)1420mm	(L)4030(W)970(H)1500mm	(L)4030(W)980(L)1500mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About 500kg	About 580kg	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	optional air filling device）/optional angle folding）
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Working Process:

1. Manual Feeding Burger

2. Automatic Film Roll Making Bag

3. Nitrogen Filling

4. Air exhaust Belt device

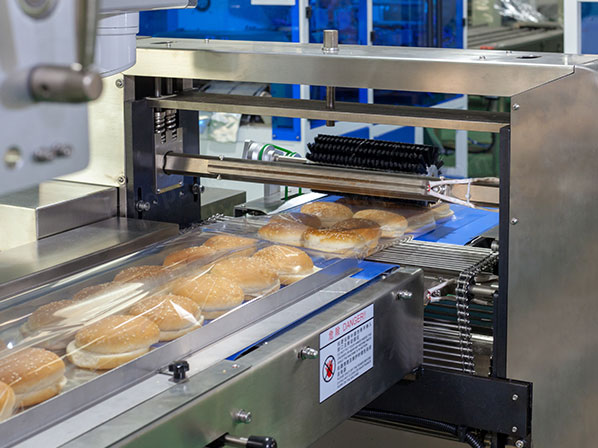

5. Rotary Cutting and Sealing
