Down Paper Flow Wrapping Machine With Three Servos

Application:

Suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.

Details:

Model:LP-250X/ 350X/ 450X/ 600X/ 700X/ 800X/ 900X

Speed:20-230 bags/min

Bag Size: L: 65-700mm; W: 30-400mm

Film width: Max.900mm

Product height: Max.150mm

Film roll diameter:Max.320mm

Packaging rate: 20-230 bags/min

Features:

Three servo motor control, Bag length can be set and cut in one step,saving time and film.

Interface features easy and quick setting and operation;

Self failure diagnosis, clear failure display;

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy;

Temperature independent PID control, more suitable for packaging different materials;

Positioned stop function, without sticking knife or wasting film;

Simple driving system, reliable working, convenient maintenance;

All control is realized through software,easy for function adjusting and technical upgrade;

Application:

Suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.

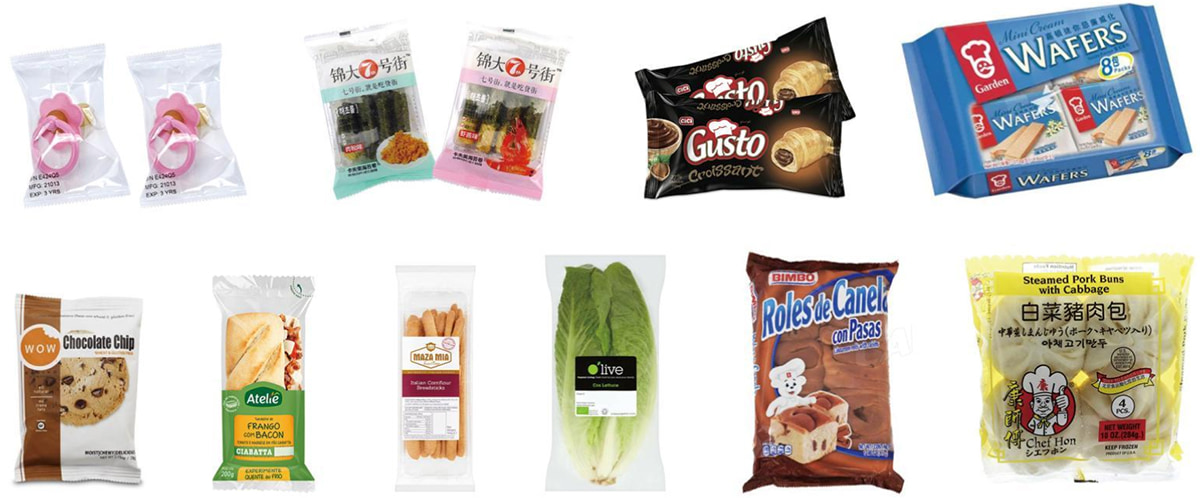

Samples:

Specification:

Type	LP-250X	LP-350X	LP-450X	LP-600X	LP-700X	LP-800X	LP-900x
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm	Max.800 mm	Max.900mm
Bag length	65-190mm or120-280mm	90-220mm or150-330mm	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.45mm	Max.65mm	Max.80mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-230 bags/min	40-150Bags/min	20-150 bags/min	20-130 bags/min	20-120bag/min	20-100 bags/min
Power	220V,50/60Hz,2.6kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,4.5kw	220V,50/60Hz,4.5kw
Machine size	（L）3920（W）670（H）1320mm	（L）3920（W）670（H）1320mm	(L)4150(W)820(H)1450mm	(L)4300(W)920(H)1460mm	(L)4380(W)980(L)1480mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About 500kg	About 550kg	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	optional air filling device / optional angle folding
Film material	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
