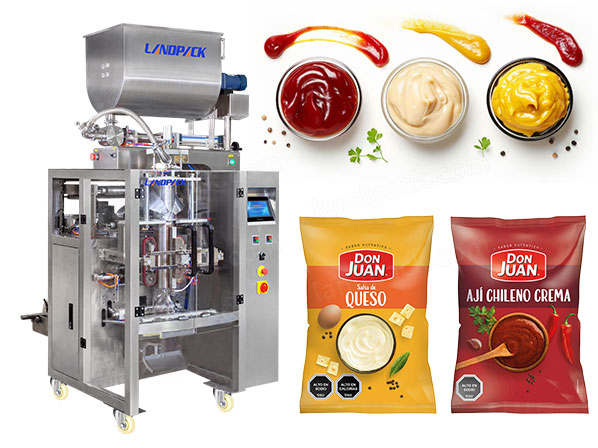

Automatic Ketchup Packaging Machine Honey Tomato Sauce Sachet Pouch Filling And Packing Machine

Application:

This automatic packing machine is customized for differernt kinds of liquid products like ketchup,softener,gel,sauce, paste, jam, oil, juice, drinks, etc. metering, filling, sealing and packing into pouch

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

1.Automatic metering and filling.

2.Horizontal mixing hopper for thorough, uniform blending.

3.Customized leak-proof valve to prevent dripping.

4.Piston metering allows packaging of products with seeds.

Application:

This automatic packing machine is customized for differernt kinds of liquid products like ketchup,softener,gel,sauce, paste, jam, oil, juice, drinks, etc. metering, filling, sealing and packing into pouch

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Working Process:

Automatic feeding

Mixing and heating

Date Printing

Filling

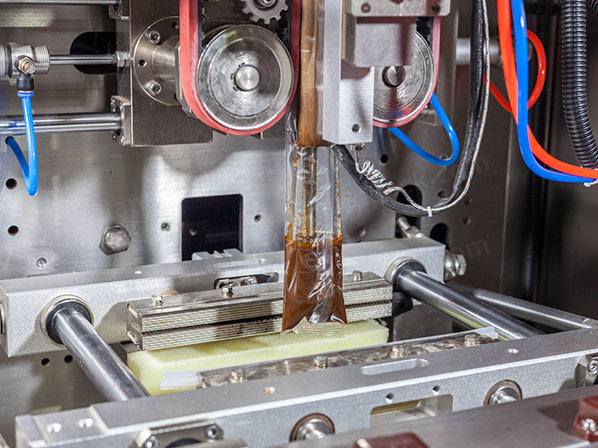

Sealing
