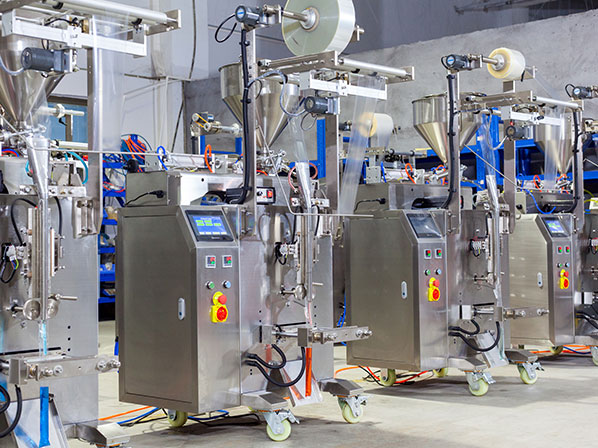

Automatic Vertical Fom Filling Seal Packaging Packing Machine For Liquid Product

Application:

This machine design for nomal type, high ropy type liquid products, such as jelly bars, popsicles, keychup, peanut butter, shampoo, cream, edible oil, jam, milk, juice, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: [email protected]

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Combined Parts:

Features:

1. Application for liquid and sauce, such as juice, taco and salad sauce, ketchup.

2. Various sealing formats, back seal, three side and four side seal, etc.

3. Photoelectric eye sensor realizes high precision cutting film.

4. Servo motor control procedure, more intellectual and more durable.

Application:

This machine design for nomal type, high ropy type liquid products, such as jelly bars, popsicles, keychup, peanut butter, shampoo, cream, edible oil, jam, milk, juice, etc.

Videos Introduction:

Specification:

Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg

Combined Parts:

LD series main frame

Screw metering machine

Screw infeed conveyor

Product conveyor
